产品详细内容

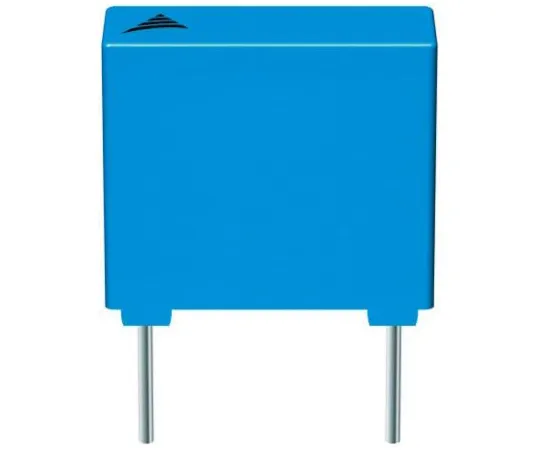

产品型号: 63-6657-43
产品品牌: EPCOS
功能
- EN132400/IEC60384-14 (300 V AC) UL1414 (250 V AC) UL1283 (400 V AC) CSA C22.2 No.1 (250 V AC) CSA C22.2 No.8 (400 V AC)
- Designed for direct connection to power distribution systems, it should not be used in locations where capacitor failure could cause electric shock.
- B3202* Series
- Polypropylene structure of plastic case (UL94 V-0) and epoxy resin seal (UL94 V-0) Ultra-compact, excellent self-recovery, high voltage resistance General applications include Y2 class for interference suppression and line grounding, etc. Operating temperature: -40 → +110 °C
规格
- Quantity: 1 Bag (10 Pieces)
- Capacitance: 33 nF
- Voltage: 300 V ac
- Mounting Type: Through Hole
- Tolerance: ±20%
- Series: B32022
- Lead Pitch: 15 mm
- Length: 18 mm
- Depth: 8 mm
- Height: 14 mm
- Dimensions: 18 x 8 x 14 mm
- Temperature Characteristic: PP
- Lead Diameter: 0.8 mm
- RoHS compliance status: Compliance
- Securities Code: 466-510
