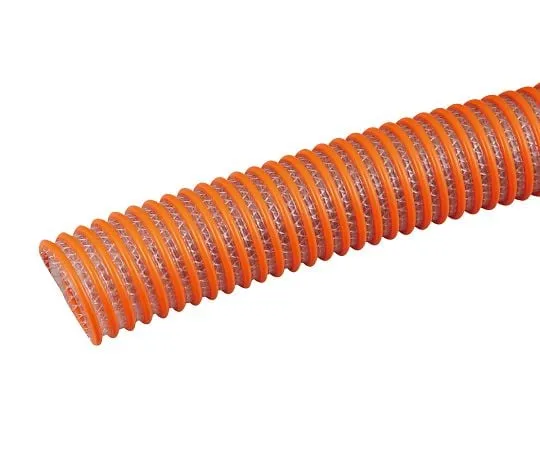

![4-2627-05-01 [Cut Product] SD Hose Line Ace 65 mm Length 1 m 22114-065](https://www.hgauge.com/wp-content/uploads/2025/05/b9cf9f9942ad63bf0b31ded4060b05b6.webp)
产品详细内容
产品型号: 4-2627-05-01
产品品牌: TOTAKU INDUSTRIES
功能
- SD hose pressure resistant type.
- Comes with reinforcing cord and has pressure resistance of allowable pressure 0.50 MPa (5.1kgf/cm2).
规格
- Number: 1 m x 1 Piece
- Nominal diameter (mm): 65
- Input (m): 1
- Inner Diameter x Outer Diameter (mm): 63.5 x 78.5
- Material: PVC
- Temperature: -10 °C to +50°C
- Fluid: Water/Hot Water
- Transparent
- Nominal Diameter (inches): 2 1/2
- Pitch (mm): 14.3
- Reference mass (g/m): 1305
- Allowable reduced pressure (normal temperature) kPa (mmHg): 0.50 (5.1)
- Allowable b radius (mm): 270
