功能

• TE Connectivity SOLISTRAND Ring Terminal

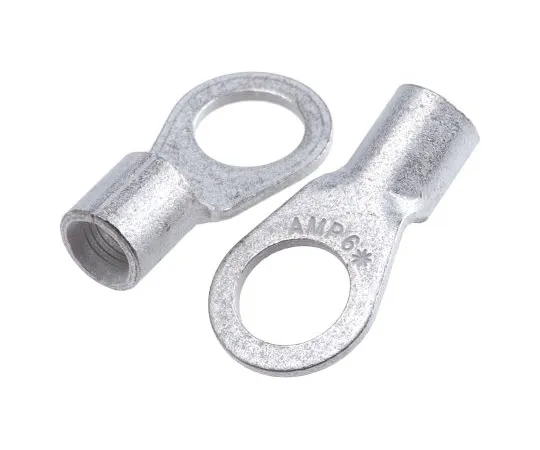

• The SOLISTRAND ring crimp terminal is designed for the termination of conductors with irregular shapes from single or stranded wires.　The SOLISTRAND ring terminal has a robust design and maintains excellent performance characteristics in extremely harsh environments.　This design also extends the service life of the SOLISTRAND ring terminal.　The SOLISTRAND ring terminals are made of high-purity, high-conductivity copper to optimize electrical performance and are electrotin-plated to enhance corrosion resistance.　The closed barrel has a brazing seam that enhances the strength of the metal and is resistant to harsh industrial environments.　The inner surface of the barrel is serrated to maximize the strength of extension and the area of electrical contact after crimping.　The resulting "W" crimp enables you to use shorter, more cost-effective barrels.　The opening in the barrel of the SOLISTRAND ring terminal is bell-shaped and allows easy insertion of wires, which reduces installation time.　To optimize the combination of mechanical strength and conductivity, the SOLISTRAND ring terminals are installed using a special SOLISTRAND crimping tool sold separately.
• Features and benefits: Optimize electrical performanceHigh purity, high conductivityCopper corrosion resistanceElectrotin platingRobust design for use in harsh environmentsBrazing seams for increased barrel strengthBarrel with dimple/sawtooth finish for increased electrical performance and extension strengthBarrel with bell-shaped mouth for quick and easy wire insertionUp to 170 °C rating for all standard applications
• Applications: SOLISTRAND Crimp ring terminals are suitable for a wide range of applications including material handling equipment, motors, heavy equipment, pad and pole mounting transformers, switchgear, communications, appliances, panel boxes, power supplies, instrumentation and control.
