产品详细内容
产品型号: 63-6587-23
产品品牌: 3M Company
功能

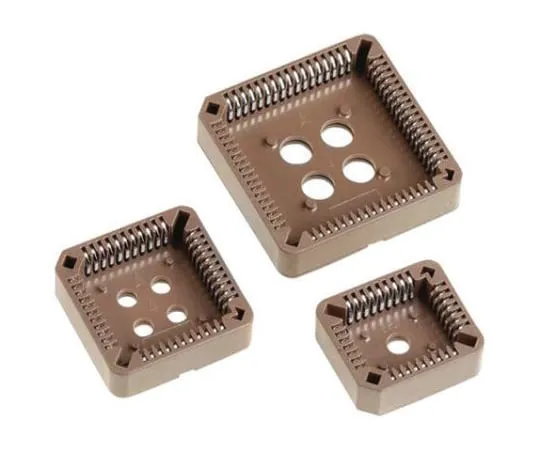

- 3M 8400 Series Low Profile, 4 Row PLCC Socket
- 8400 Series 4 Row Substrate The PLCC socket corresponds to PLCC. The square corresponds to JEDEC outline MO-047, and the rectangle corresponds to MO-052. The 8400 series PLCC socket has a low profile design and an upper opening for unrestricted airflow. It also has a molding slot for easy device removal. In addition to infrared reflow and wave soldering, the heat-resistant insulation of the 8400PLCC socket is compatible with automatic load devices.
规格
- 数量:1管 (25个)
- 男性和女性:女性
- 联系人数量:44
- 身体方向:直
- 接触材料:铜合金
- 间距:1.27 mm
- 接触电镀:锡在镍上
- 安装类型:通孔
- 终端方法:焊锡
- 住房材料:PET
- 高度:8毫米
- 工作温度最大值:+105度C
- 工作温度最小值:-40摄氏度
- 系列:8400
- RoHS合规性状态:合规性
- 证券代码:211 -219
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备

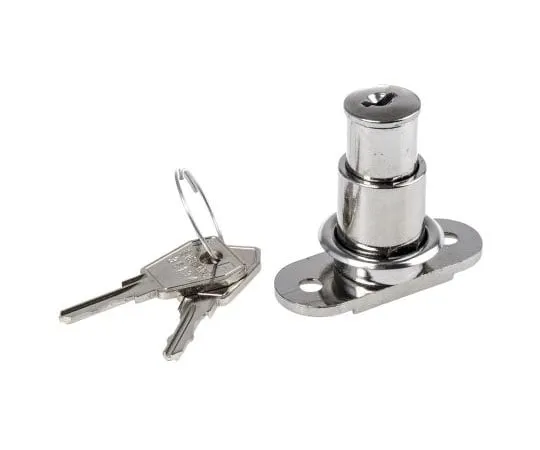

63-7454-07 EuroLocks a Lowe&Fletcher group Company Panel to Tongue Depth 24mm Chrome Plated Sliding Door Lock, Key to unlock 5663502
