产品详细内容
产品型号: 64-0868-23
产品品牌: SANWA SUPPLY INC.
功能
- Easy to mount to 19 inch server rack with 3 mounting methods
- Easy to mount to 19 inch server rack with 3 mounting methods. ① Attached mounting bracket can be attached to side frame (2) Since there is a mounting hole in the main body of the tap, it can be directly attached with screws. * Mounting screws are not included. ③ Can be attached to the mounting frame with optional L-shaped mounting bracket * L-shaped mounting bracket is sold separately.
- * The included metal fittings are only 2 for the slide rail of the tap body.
- An energized LED lamp is provided as standard.
- With the of the pull-out stop type insertion port, unexpected pull-out is prevented.
- The bottom and sides of the tap body are made of lightweight and sturdy aluminum.
- The terminal block has a transparent cover that lets you see the connection status at a glance.
- Power cord (3m) and plug are included as standard.
规格
- 额定容量:15A125V
- 插入端口:3P Stopper 12个
- 插头:3P (接地插头)
- 电线长度:3米
- 代码类型:VCTF 2.0 (3核)
- 压圆端子:压圆端子R2 -5 (JISC 2805当量)
- 配件:滑轨主体金属支架 (2个)
- :日本 使用条件
- 温度:-5°C~40°C (但是,24小时平均值不得超过35度。)
- 湿度:85%以下 (不要结冰或露水) 。
- 海拔高度:2000米以下
- 使用 :没有多余的水蒸气、油蒸气、烟雾、腐蚀性气体等。不受异常振动或冲击的 。
相关产品推荐
您可能还对以下产品感兴趣
67-0455-13 Tubing - Aluminum(5/8inch OD×10inch L×0.569inch ID) ROB-12254
型号: 67-0455-13
品牌: SparkFun

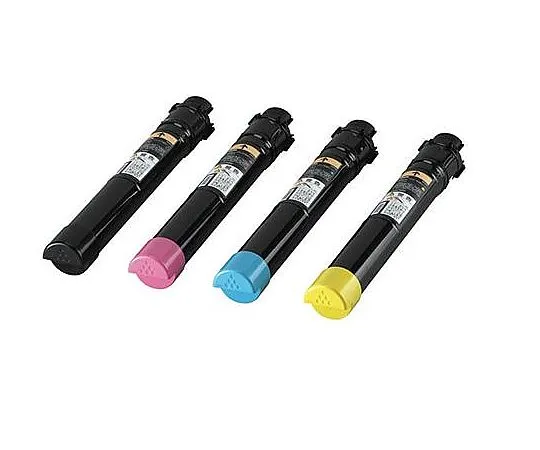

67-7539-58 [Discontinued]Environmental Propulsion Toner (V) for LP-S9000 (Yellow) Page 9, 000 LPC3T15YV
