产品详细内容

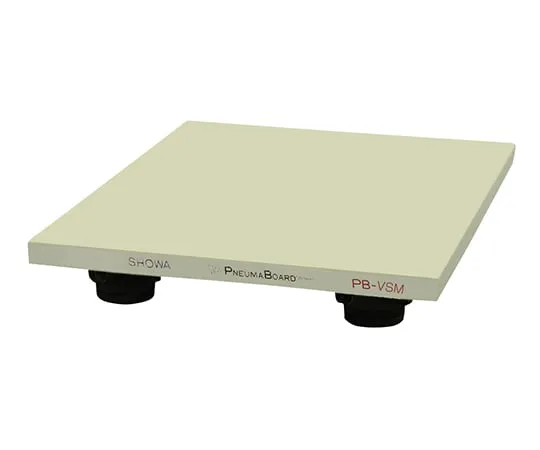

产品型号: 62-9897-78
产品品牌: CHUO PRECISION INDUSTRIAL Co., Ltd.
功能
- It is a simple vibration absorber that can be used as it is on an office desk or workbench.
- Adopting a composite mount (PAT.P) that combines a coil spring and a viscoelastic body, this Vibration Isolation Table is maintenance-free with excellent vibration isolation performance and high damping characteristics.
- Lightweight, compact and thin type for easy carrying.
- The resonant magnification is approximately 2.5 times, which is a remarkable performance.
- Equipped with leveling function, it can also cope with variable load of mounted equipment.
规格
- Surface Size: Width 1,000 mm x 700 mm
- Height: 92 mm (unloaded)
- Mass: 36 kg
- Loadable mass: 10~80 kg
- Natural Frequency: Horizontal/Approx. 2.5 Hz, Vertical/Approx. 4 Hz
- Top: Iron Plate (SPCC)
- No need for air source
- Application examples: optical microscopes, roughness meters, measuring instruments, weighing instruments, etc.
