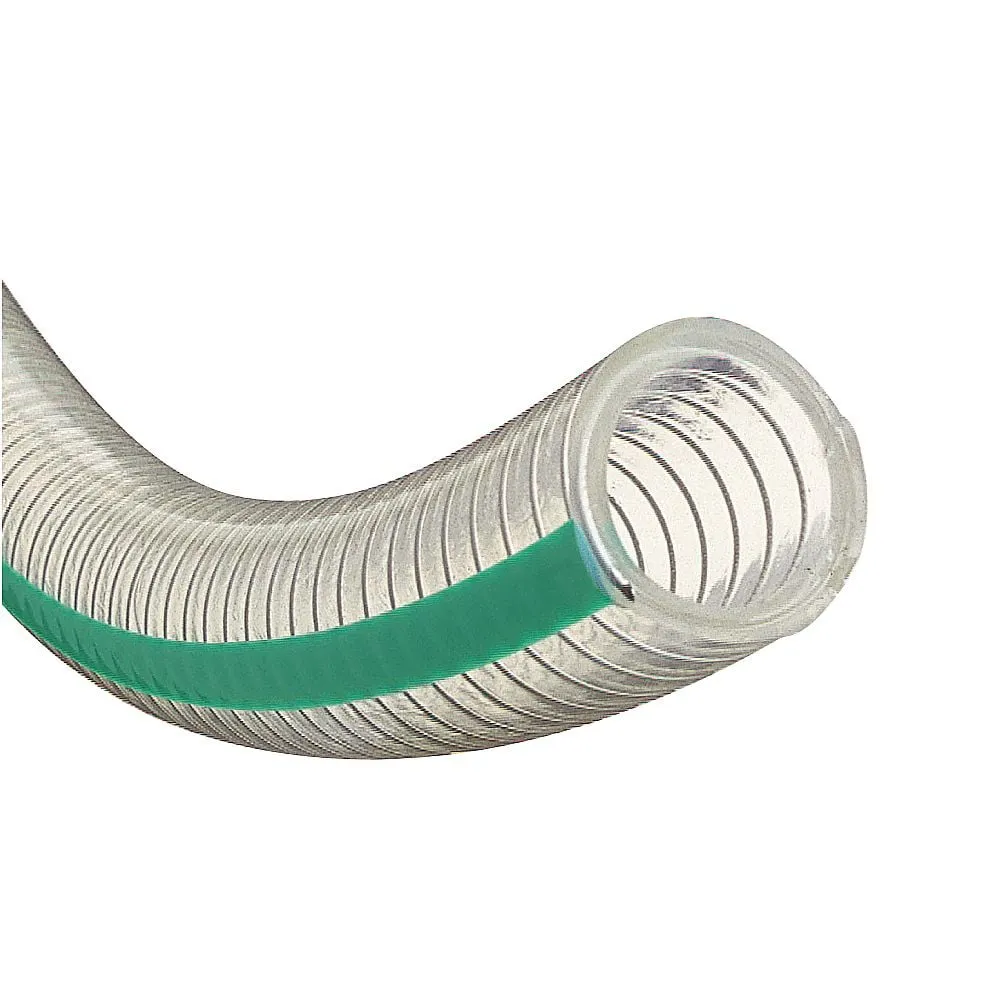

2-3628-01-01 [Cut Product] Heat and Pressure Resistant Hose for Transportation and Suction of Food and Drinking Water, etc. TOYOFOODS S Hose Inner Diameter 25 mm x Outer Diameter 33 mm Length 1 m TFS-25-01
连接器/管件/泵阀

2-3628-01-01 [Cut Product] Heat and Pressure Resistant Hose for Transportation and Suction of Food and Drinking Water, etc. TOYOFOODS S Hose Inner Diameter 25 mm x Outer Diameter 33 mm Length 1 m TFS-25-01

型号: 2-3628-01-01
品牌: TOYOX CO., LTD.

产品描述

产品型号: 2-3628-01-01产品品牌: TOYOX CO., LTD. 功能 "Main ": for […]

联系我们

咨询热线

18866622123

微信咨询

微信号: AHY97319570

微信二维码

产品详细内容

产品型号: 2-3628-01-01
产品品牌: TOYOX CO., LTD.

功能

  • "Main ": for transporting and sucking food, beverages, oily foods, etc.
  • "Food-fri ly": Non-phthalic acid plasticizer is d for food, beverages, and oily foods. Soft vinyl chloride pressure-resistant hose for pumping and vacuuming.
  • "Heat-resistant": Heat-resistant and pressure-resistant hose that can be safely d up to 70°C
  • "Oil resistance": Compliant with the Food Sanitation Law, it is a safe and long-life pressure resistant hose that does not harden easily even with oily foods.
  • "Shape Retention": Hard steel wire coil reinforced structure resistant to breaking and crushing of hoses, suitable for vacuum (suction) transportation.
  • "Variety of Sizes": Pressure-Resistant Hose for Pressure Feed and Suction with Variety of Sizes (Inner Diameter 25~100 mm)
  • Compliance: Food Sanitation Act compliance (the Ministry of Health, Labour and Welfare Notification No. 196), FDA compliance
  • Compliant with RoHS2 (as of October 2021)

规格

  • Quantity: 1 m x 1 Piece
  • Model Number: TFS-25
  • Inner Diameter x Outer Diameter (φmm): 25 x 33
  • Minimum b radius (mm): 100
  • Material: Soft PVC (Vinyl Chloride Resin), Reinforcement/Hard Steel Wire
  • Operating Temperature Range: -5 to +70°C
  • Working pressure (70°C): -0.1~0.3 MPa
  • Food Sanitation Law Compliant Product

相关产品推荐

您可能还对以下产品感兴趣

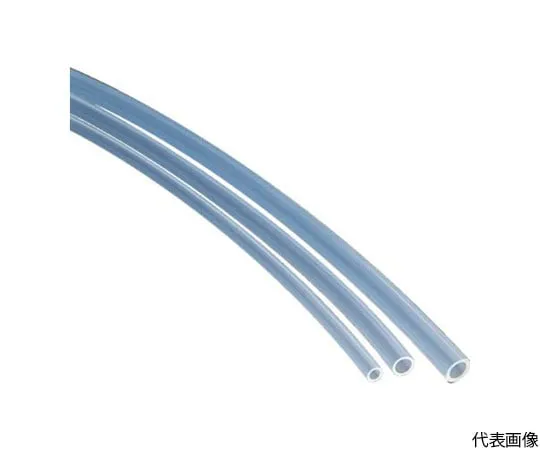

64-4806-80 氟塑料 (PFA) 管12 x 10 100 M SFT1210-100-C
连接器/管件/泵阀

64-4806-80 氟塑料 (PFA) 管12 x 10 100 M SFT1210-100-C

型号: 64-4806-80 品牌: NIHON PISCO CO., LTD.
61-4396-85 PFA热收缩管EIT 1.5P F-8005-01
连接器/管件/泵阀

61-4396-85 PFA热收缩管EIT 1.5P F-8005-01

型号: 61-4396-85 品牌: GUNZE LIMITED

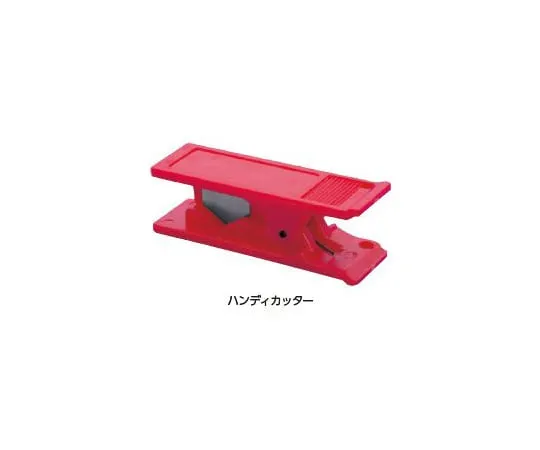

64-1238-95 Handy Cutter JC-2
