1-2894-02-01 Chemical-Resistant/Solvent/Food Fluorine Hose TOYOFUSSO(R) Inner Diameter 12 mm x Outer Diameter 18 mm Length 1 m FF-12-1
连接器/管件/泵阀

1-2894-02-01 Chemical-Resistant/Solvent/Food Fluorine Hose TOYOFUSSO(R) Inner Diameter 12 mm x Outer Diameter 18 mm Length 1 m FF-12-1

型号: 1-2894-02-01
品牌: TOYOX CO., LTD.

产品描述

产品型号: 1-2894-02-01产品品牌: TOYOX CO., LTD. 功能 Fluorine hos […]

联系我们

咨询热线

18866622123

微信咨询

微信号: AHY97319570

微信二维码

产品详细内容

产品型号: 1-2894-02-01
产品品牌: TOYOX CO., LTD.

功能

  • Fluorine hose for transporting chemicals, solvents, cosmetics, oil, food, etc.
  • "Tetrafluoride fluororesin": Tetrafluoride fluororesin is d inside the hose. Utilizing characteristics such as chemical resistance, non-elution, non-adhesion, and low odor, it can be d as a hose for all kinds of equipment piping.
  • "Versatile": Can be d as a hose for transporting chemicals, chemicals, pure water, cosmetics, food, semiconductors, etc.
  • "Coloring and flavoring": The inner surface is non-adhesive and excellent in water repellency, and is difficult to color, and has little effect on smell and taste.
  • "Cleanability": Since the inner surface of the hose is non-adhesive and excellent in water repellency, fluid does not remain in the hose and cleaning is easy.
  • Pressure bearing blade hose

规格

  • Inner Diameter x Outer Diameter (mm): 12 x 18
  • Pressure (MPa): 0~1.0 (23°C), 0~0.5 (80°C)
  • Operating temperature range: -20~80°C
  • Length: 1 m
  • Material: Body/4Fluorinated Fluororesin (Modified ETFE), Reinforcement/Polyester Thread
  • Minimum b radius: 85 mm

相关产品推荐

您可能还对以下产品感兴趣

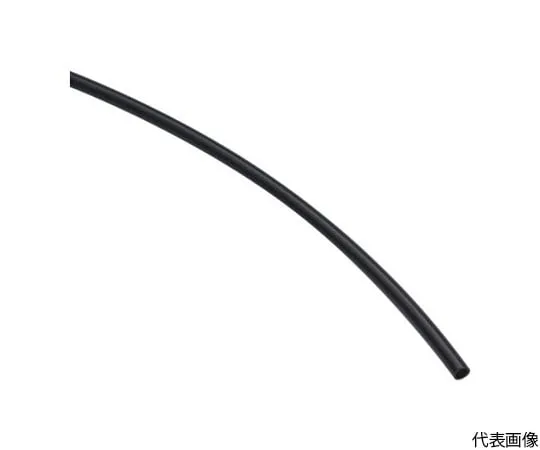

64-4806-46 氟塑料 (FEP) 管黑色10×8 20 M SET1080-20-B
连接器/管件/泵阀

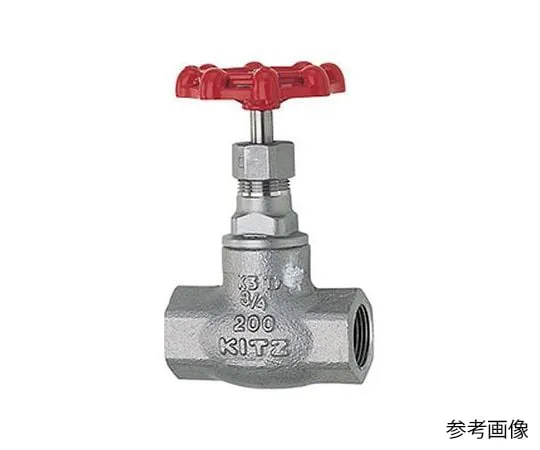

65-1877-23 Globe Valve (UJ) Nominal Diameter 10 mm UJ10A
连接器/管件/泵阀

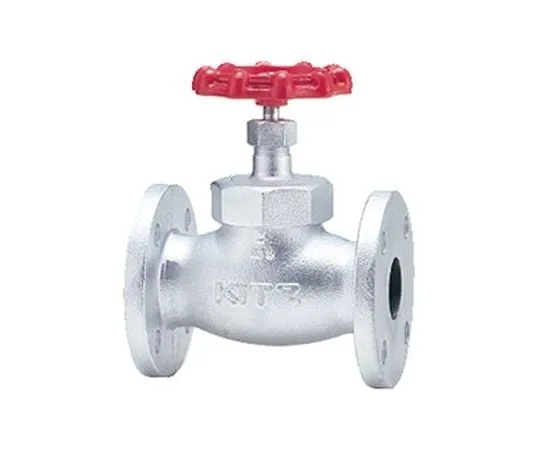

65-1880-79 Ductile Iron Glove Valve (10 SPBF) Nominal Diameter 10 mm 10SPBF10A
