1-1721-01-01 Heat Resistant/Food Pressure Resistant Hose TOYOSILICONE Hose Inner Diameter 4.8 mm x Outer Diameter 10.6 mm Length 1 m TSI-5-1
连接器/管件/泵阀

1-1721-01-01 Heat Resistant/Food Pressure Resistant Hose TOYOSILICONE Hose Inner Diameter 4.8 mm x Outer Diameter 10.6 mm Length 1 m TSI-5-1

型号: 1-1721-01-01
品牌: TOYOX CO., LTD.

产品描述

产品型号: 1-1721-01-01产品品牌: TOYOX CO., LTD. 功能 "Heat and co […]

联系我们

咨询热线

18866622123

微信咨询

微信号: AHY97319570

微信二维码

产品详细内容

产品型号: 1-1721-01-01
产品品牌: TOYOX CO., LTD.

功能

  • "Heat and cold resistance": Heat-resistant and pressure-resistant silicone rubber blade hose for pressure feeding. Heat-resistant hose that can be d in a wide range of temperature conditions from -30°C to 150°C.
  • "Trouble prevention": High pressure resistance and safety with thread slip-off prevention structure.
  • "Safe and secure": Can be d as a safe and secure heat resistant hose by taking advantage of its characteristics such as low elution, insulation, and low odor.
  • "Flexibility": Compared to rubber hoses and PVC hoses, it is flexible and easy to perform piping, etc.
  • Compliant with Food Sanitation Law, FDA (US Food and Drug Administration), USP (US Pharmacopeia) ClassVI, RoHS2 revised regulations for safety and peace of mind. Can be safely d as a food hose.

规格

  • Inner Diameter x Outer Diameter (mm): 4.8 x 10.6
  • Pressure (MPa): 0~1.0
  • Operating temperature range: -30~150°C
  • Length: 1 m
  • Material: Body/Silicone Rubber, Reinforcement/Polyester Thread
  • Minimum b radius: 70 mm
  • RoHS3 (EU)2015/863 Certificates can be issued

相关产品推荐

您可能还对以下产品感兴趣

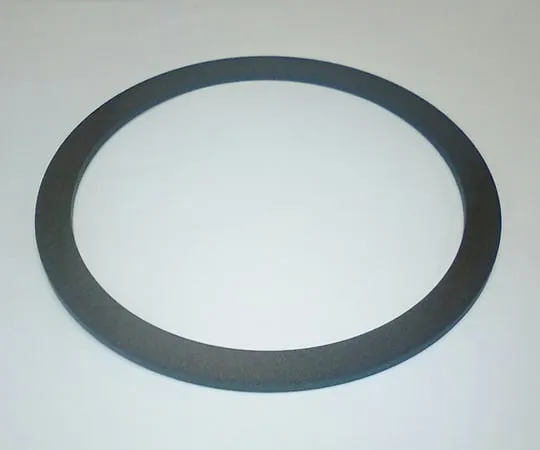

62-3053-80 或备份环 (10FF) BRT3P-22 BRT3 P-22
连接器/管件/泵阀
61-4382-90 NEOFLON高压迷 分配支架2φ3每小时分配 F-2103-01
连接器/管件/泵阀
6-610-26-90 乙烯管软管10 x 12 100 m -
连接器/管件/泵阀

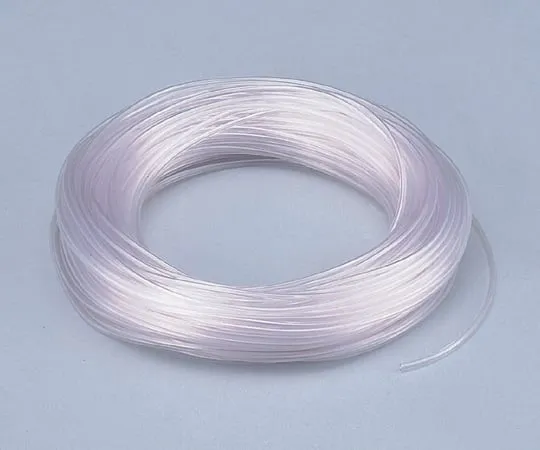

6-610-10-06 乙烯基管管6×8 6米
