1-1720-02-01 Pressure Hose for water, oil, chemicals, and air (for plant equipment and mechanical piping) TOYOSPRING Hose Inner diameter 8.0 mm x Outer diameter 13.5 mm Length 1 m TS-8-1
产品描述
产品型号: 1-1720-02-01产品品牌: TOYOX CO., LTD. 功能 "Main applic […]
联系我们
产品详细内容
产品型号: 1-1720-02-01
产品品牌: TOYOX CO., LTD.
功能
- "Main applications": Plant piping, mechanical piping suction and pressure feeding
- "Multipurpose resin hose": Pressure-resistant hose that can be d for pumping and suction (vacuum) of various fluids such as water, oil, chemicals and air.
- "Prevention of breakage and crushing": Reinforced structure with hard steel wire coil, resistant to breakage and crushing, and stable fluid supply
- "Long life": The inside and outside surfaces of the hose have excellent oil resistance and do not harden and have a long life.
- "Plenty of Sizes": Pressure-Resistant Hose for Suction and Pressure Feeding with Plenty of Size Variations (Inner Diameter 6~100 mm)
- Transparency: Transparency allows you to see the fluid inside.
- Compliant with RoHS2 (as of October 2021)
规格
- Inner Diameter x Outer Diameter (mm): 8 x 13.5
- Pressure (MPa): -0.1~0.8
- Operating temperature range: -5~60°C
- Length: 1 m
- Material: Body/Soft PVC, Reinforcement/Hard Steel Wire
- Minimum b radius: 35 mm
- RoHS3 (EU)2015/863 Certificates can be issued
相关产品推荐
您可能还对以下产品感兴趣
连接器/管件/泵阀

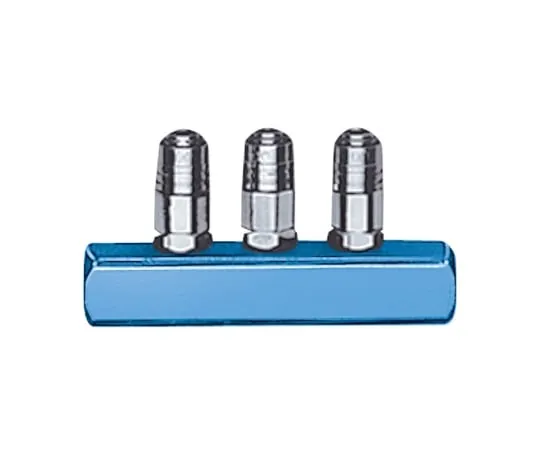

65-9006-76 ［Discontinued］Micro Coupler Branch Number 3 Sockets MC-03
型号: 65-9006-76
品牌: NITTO KOHKI CO., LTD.
![3-9508-13-01 [Cut Product] PVC Duct Hose (EE) 50.6 x 60.2 mm Length 1 m 21107-050](https://www.hgauge.com/wp-content/uploads/2025/05/bde2db1b0668de222d3585b8f2c37678.webp)
连接器/管件/泵阀

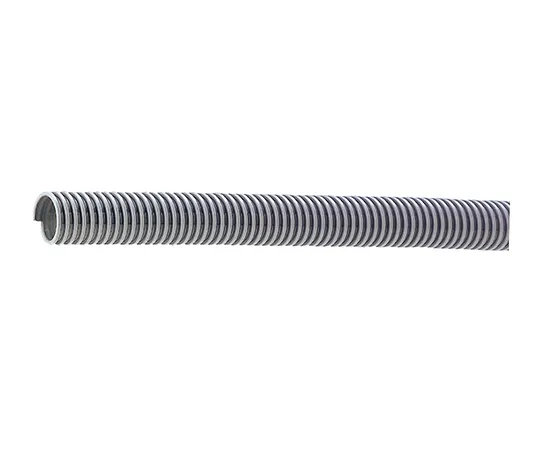

3-9508-13-01 [Cut Product] PVC Duct Hose (EE) 50.6 x 60.2 mm Length 1 m 21107-050
