功能

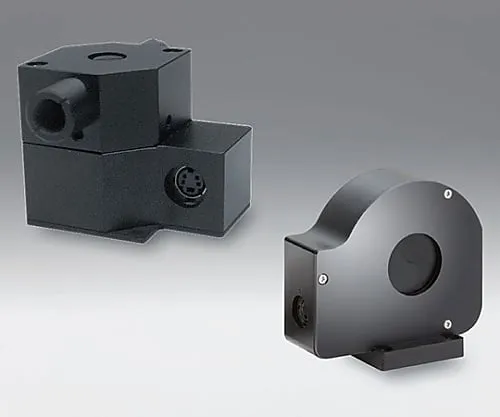

• This automatic electromagnetic shutter is used when you want to turn the laser beam on or off by remote control, or when you want the laser beam to shine for a certain period of time.
• Connect to a dedicated controller.
• SSH-S is for small-diameter laser beams (φ4 mm or less), and SSH-25RA is for large-diameter imaging lens systems (φ24 mm or less).
• It can be used to expose holograms and photosensitive materials and as a safety measure for laser optics.
• If you remove the rod, you can install it directly on the baseplate with the M3 screws.
• You can also operate the shutter on a PC via the 2-axis shutter controller (SSH-C2B).
• * Automatic shutter holder cannot be used for high-power laser or high-energy pulse laser.
• * High-power laser shutter (SHPS) is available.
• * Do not use the automatic shutter holder with anything other than a dedicated controller.
• The shutter may not operate properly.
• * SSH-25RA does not work with the old shutter controller (SSH-C4B, SSH-C1R).
• * SSH-S users can use SSH-C4B.
• * The shutter holder and controller do not come with cables. Please purchase a special cable together.
