产品详细内容

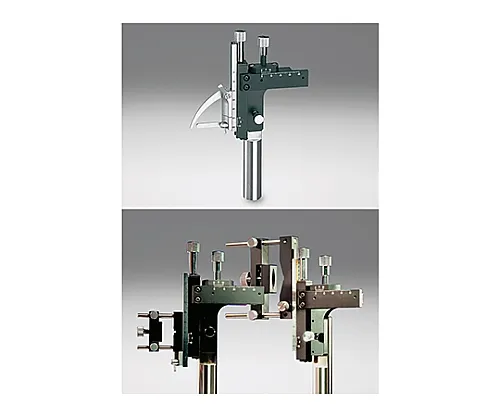

产品型号: 61-6993-39
产品品牌: SIGMAKOKI CO., LTD.
功能
- Centering holder with clemmel, slide lens holder and iris diaphragm attached to 2-axis ant type stage.
- * The ant-type stage for lens centering does not have a clamp mechanism.
- * The stage position may move due to vibration or impact.
- * If a heavy object is fixed, the stage may descend slowly.
- * Clemmel (TMEN) cannot be held upright.
- * With the slide lens holder (TMEN-LHA), loosening the lens clamp and the slide clamp can cause the lens to fall off.
- * With the slide lens holder (TMEN-LHA), the distance between the lens and the rod changes when the outer diameter of the lens changes.
- * Adjust the position of the ant-type stage before use.
- * The scale of the iris aperture (TMEN-IH-30) is a rough guide.
- * There is a big back crash due to the structure of iris aperture.
- * The diameter and scale of the iris aperture may be out of alignment.
- * The iris aperture (TMEN-IH-30) has a very delicate structure.
- * Do not push or pull the wings.
规格
- [>XZ机械级< 通用规格]
- 主要材质:黄铜
- 表面处理:黑色涂层
- 【个别规格】
- 类型:滑动镜头
- 兼容光学尺寸:φ10 -60 mm
- 相容光学厚度:1-4.7公厘
- 孔径MAX:?
- 孔径MIN:?
- 垂直方向，调整范围:50公厘
- 水平方向，调整范围:30公厘
- 承受负载:?
- 质量:0.6公斤
- 符合RoHS标准的产品
相关产品推荐
您可能还对以下产品感兴趣
生命科学/分析仪器

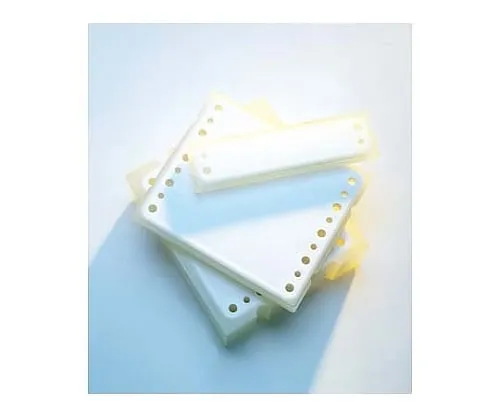

61-0267-26 Pellicon 2纸盒UF模式PLCMK V 0.5m2 1/ Pk1ST P2C300V05
