产品详细内容

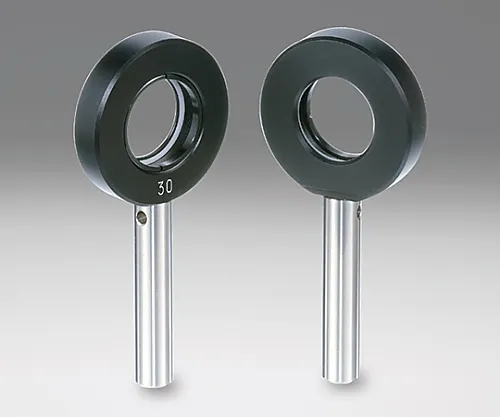

产品型号: 61-6992-03
产品品牌: SIGMAKOKI CO., LTD.
功能
- This lens holder firmly secures the lens used in the optical system.
- You can choose the lens size holder you need from a wide range of sizes.
- In addition to a general lens holder, there are A type which can fix a lens with a thickness, and a large type which is used for a lens with a large outer diameter of φ80 mm or more.
- A fixed lens holder (LHF-S) with a thin lens frame is also available.
- We also have a compact centering lens holder (LHCM) that allows you to adjust the centering of the lens.
规格
- [>固定镜头支架< 通用规格]
- 主要材料:铝
- 表面处理:黑色阳极氧化物
- 【个别规格】
- 兼容光学器件，尺寸φA:φ10mm+0.3/+0.2 mm
- 相容光学元件，厚度:3 -6公厘
- 有效直径φB:φ7mm
- 光轴高度C:15公厘
- D:4公厘
- φE:φ32mm
- 华氏:12公厘
- G:M10.85 P0.75
- φH:φ12mm
- 我:M6
- 质量:0.07公斤
- 符合RoHS标准的产品
相关产品推荐
您可能还对以下产品感兴趣
生命科学/分析仪器

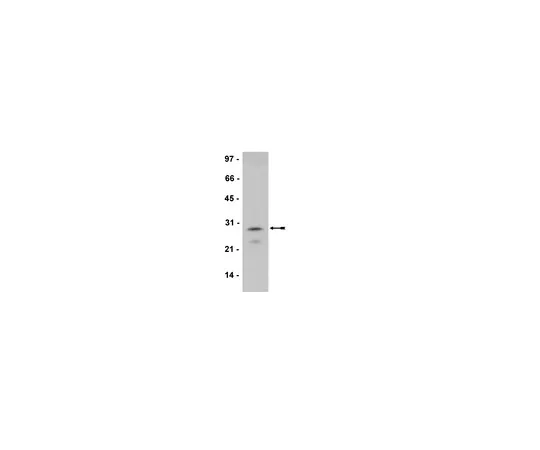

62-8372-76 ［已停用］抗卡尔森林/DREAM,克隆40A5;100μL 05-756
