产品详细内容

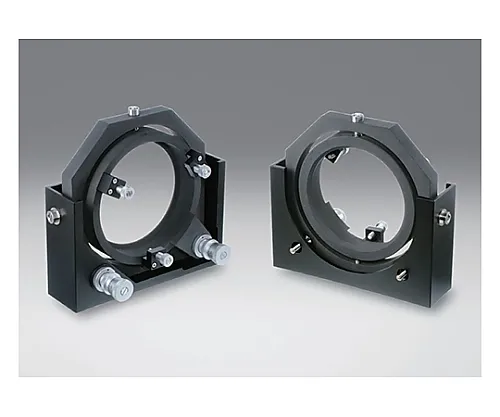

产品型号: 61-6990-86
产品品牌: SIGMAKOKI CO., LTD.
功能
- Gimbal mirror holder for φ100 mm or larger mirror.
- The optical path length deviation caused by the inclination adjustment of the mirror, which is a problem with large mirrors, can be reduced.
- The mirror presser that secures the mirror is structured as a set bolt and nut, allowing you to secure the mirror presser with a nut in the appropriate position.
- This is used to fix the mirror presser to the position where the mirror can be fixed with minimum force.
- Since a large knob differential micro is used, precise angle adjustment can be made.
- * When replacing the mirror, use a wrench to remove the bracket of the mirror holder before inserting the mirror.
- * If the element is pressed strongly with the mirror press, the mirror may be distorted and the surface accuracy may be degraded.
规格
- [>大型精密万向节镜架< 通用规格]
- 主要材料:铝
- 表面处理:黑色涂层 (主体) ，黑色阳极氧化物 (支架)
- 【个别规格】
- 相容光学尺寸:φ100公厘
- 相容光学厚度:5 -28公厘
- 调整范围，倾斜:±5.7°
- 调整范围，旋转:±5.7°
- 粗糙分辨率，倾斜:约0.57°/旋转
- 粗分辨率，旋转:约0.57°/旋转
- 小调整螺丝显示器转换，倾斜:约0.0008°/DIV
- 小调整螺丝显示器转换，旋转:约0.0008°/DIV
- 质量:2.1公斤
- 符合RoHS标准的产品
相关产品推荐
您可能还对以下产品感兴趣
生命科学/分析仪器
生命科学/分析仪器

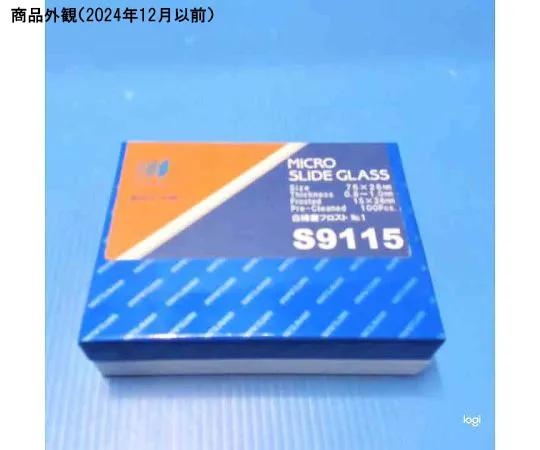

66-0009-14 MAS Coat Slide White Edge Polished Frost No. 1 100 Sheets S9115
型号: 66-0009-14
品牌: Matsunami Glass Ind., Ltd.
生命科学/分析仪器

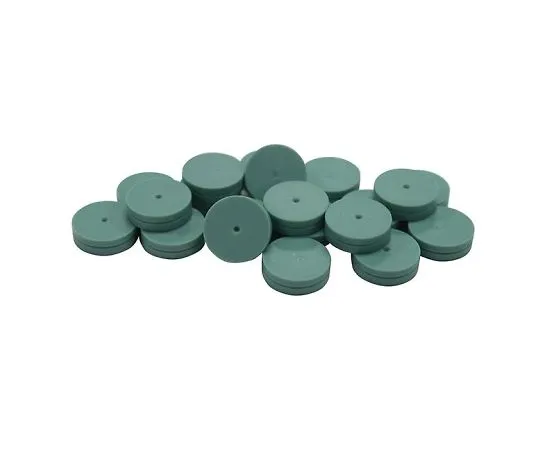

67-4601-20 CRS GC Septa AG3 (Old EC Grade) 11 mm, 100 pcs 246228
