功能

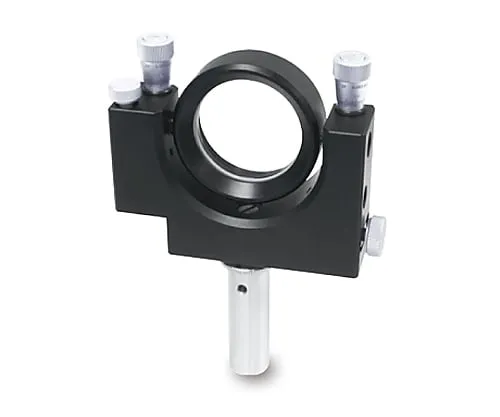

• A gimbal mirror holder that can be adjusted from above.
• You can freely change the angle of incidence of the mirror around its reflecting surface.
• It can be used when optical elements or devices are close to each other before and after the mirror, or when it is difficult to reach into the optical path and make adjustments.
• Because the mirror's reflecting surface is pressed against the mirror frame's reference surface by the threading, the mirror's thickness does not change the position of the reflecting surface, and the center of rotation always comes to the reflecting surface.
• The gimbal structure and the fine tuning mechanism with the switching clamp allow fine adjustment of the angle of the reflected beam in all directions.
• RO-20-60 (outer diameter φ20 mm, length 60 mm) is connected to the rod, but the rod can be replaced with other sizes. However, tools such as vise and pliers are required to remove and assemble the rod.
• A gimbal mirror holder (BSHL) that can be operated from above with a low optical axis is also available.
• * When the beam splitter is used at an incident angle of 45 degrees, the beam is blocked by the mirror frame, and the effective transmission diameter is reduced.
• * We also have a gimbal beam splitter holder (BHAN) that can increase the effective transmission diameter.
• * After adjusting the optical system, make sure that the switching clamp of the mirror holder is firmly tightened.
• * If the changeover clamp is not securely put away, the fine adjustment mechanism may not move, or the holder may move after adjustment, causing the adjustment to be out of order.
