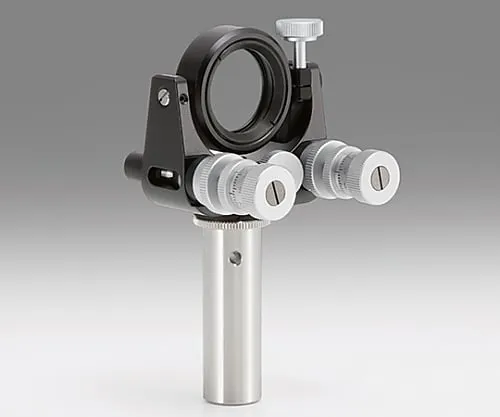

• This gimbal mirror holder improves the shape of the mirror frame so that the transmitted beam incident at 45 degrees is not chipped at the end of the mirror frame.
• The transmitted beam diameter is almost the same as the reflected beam diameter.
• It can be used for beam branching optics, Michelson interferometers, etc.
• We also have a BHAN-M with adjustment screws replaced with a micrometer with a scale.
• Basic functions other than the mirror frame are the same as MHAN.
• RO-20-60 (outer diameter φ20 mm, length 60 mm) is connected to the rod, but the rod can be replaced with other sizes.
• * The mirror frame of BHAN-S and BHAN-DM does not come with a resin ring (made of Delrin).
• * BHAN uses a special type of screw ring.
• * When using a beamsplitter with a wedge, there may be a gap between the element and the holder frame, causing rattling.
• * If you want to firmly fix the element, we recommend the MHG-NL kinematic mirror holder with 3-point indication fixing on the side.
