功能

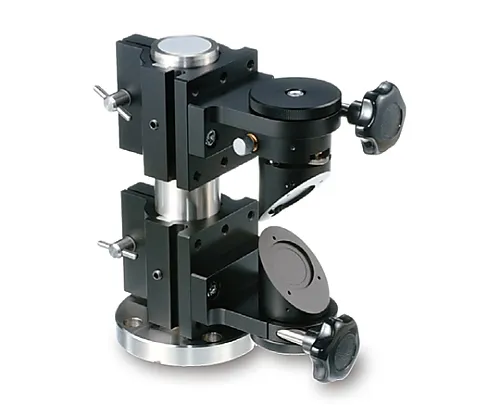

• A holder for converting a beam of a stationary laser with a low optical axis to a high optical axis.
• The height of the optical axis of both mirrors can be varied, so they can be used in lasers and optical systems of various heights.
• It is a product with 2 pairs of upper and lower sets of supports with φ38.1 mm vibration isolation function.
• The vibration isolation of the supports and the high rigidity of the holder provide high stability.
• Glue the mirror (φ30 mm, Thickness 5 mm) sold separately to the holder.
• In addition to the optical axis height of the mirror, the position of the mirror (on a circumference with a radius of 75 mm from the pole) and the direction of the mirror can be coarsely adjusted and firmly fixed with a clamp.
• An adjustment screw is attached to the mirror on the exit side, and the exit beam angle can be adjusted.
• To achieve vibration isolation performance, install the support directly on the optical laboratory table or the vibration isolation table.
