功能

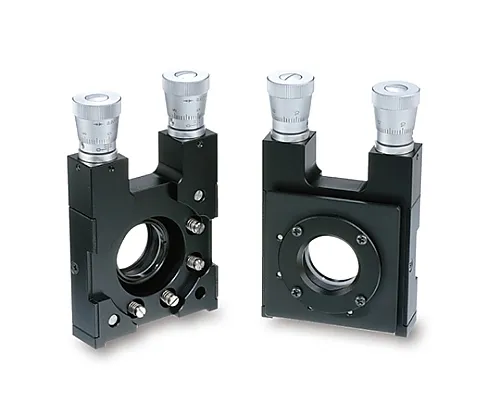

• This is a kinematic mirror holder that allows you to operate the mirror from the top or side of the optical system when optical elements or devices are close to each other in front of or behind the mirror, or when it is difficult to reach into the optical path and make adjustments.
• It can be installed so that it can be operated in either the up direction or the left or right direction using a special plate.
• The position of the optical axis height from the lower surface of the dedicated plate does not change even if the LMHB is changed from the top operation to the side operation by changing the mounting direction.
• A micrometer type (LMHB-M) and a precision type using a differential microhead (LMHB-DM) are available.
• LMHB can select various mounting methods by replacing the special plate.
• It is also possible to mount the LMHB in different directions on any of the dedicated plates.
• A gimbal top operation mirror holder (BSHL) is also available where the center of rotation for fine adjustment is located at the center of the mirror reflecting surface.
• * LMHB cannot be directly attached to the base plate without a special plate (LMHBP).
• * When the beam splitter is used at 45 degree incidence, the effective diameter of the transmitted light is small because it is blocked by the frame of the mirror.
• * For 45 degree transparency, use the kinematic mirror holder MHG-NPWEB or the gimbal mirror holder MHAN.
