功能

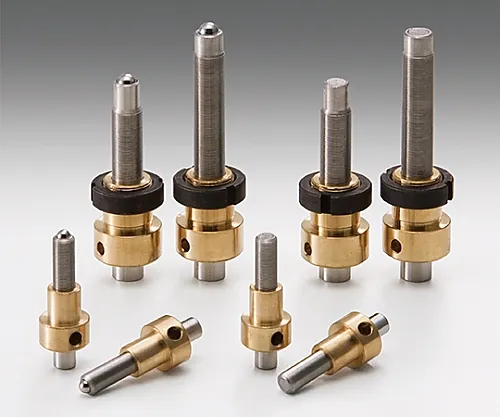

• This product is compatible with the micrometer head mounting part used for the manual stage of the company.
• By eliminating the knob part, space saving is realized, and it is effective in preventing malfunction.
• Depending on the application, you can select a screw pitch of 0.25 mm or 0.5 mm.
• The screw bushing section has a locking mechanism.
• Tip shape is available in flat type and R type (last part number: R).
• The tip flat type is compatible with the company's manual stage and holder, so the specification can be changed.
• Use a hex wrench with knobs (KCL) or your own hex wrench for adjustment.
• Since the clamp is performed with a resin set screw at the tip, the screw thread of the spindle is not damaged.
• * Tip shape When replacing the flat type and the R type, take into consideration the object.
