功能

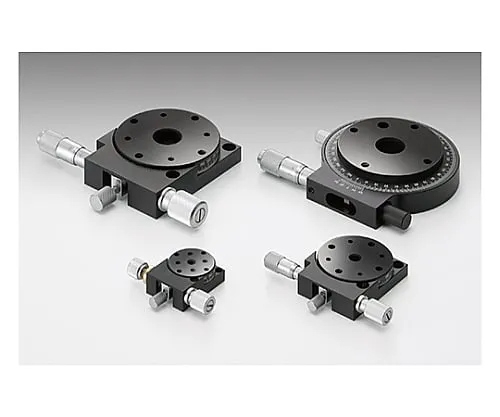

• It is a grinding type θ axis (rotation) coarse motion stage that can rotate 360° of coarse motion and fine motion (selection from micrometer head or fine pitch screw).
• For rough movement, the upper surface of the stage is directly rotated, and for fine movement, the rough part is clamped and performed with a micrometer head or fine pitch screw (±5°).
• The KSP uses shinchu for the stage body to provide high rigidity.
• The through hole in the center of the stage can be used for the through hole.
• The top spacer (SP-123) for KSP-406 can be used to change the mounting holes.
• The top spacer (SP-103) for KSP and KSPA can be used to change the mounting hole.
• Products with FP at the end of the part number use fine pitch screws.
• Please note that this is not an ordinary micrometer head.
• When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
