产品详细内容
产品型号: 61-6972-32
产品品牌: SIGMAKOKI CO., LTD.
功能
- With the ant groove guide/screw feed adjustment method, this screw feed stage is suitable for fine adjustment applications.
- The feed handle enhances operation efficiency.
- The TAS-2060 special spacers SP-127-1 and SP-134 can be used to attach the rod stand and various stages by converting the mounting holes.
- * Note that the TAS-152 does not have a clamping mechanism.
- * It may protrude from the upper surface of the stage depending on the parts fixing the feed screw and handle and the type of micrometer head.
- * Please note that depending on the shape of the specimen attached to the stage, it may not be fixed or the amount of movement may not be secured.
规格
- 表格曲面大小:15 x 15 mm
- 移动量:±3mm
- 移动指南:Dovetail方法
- 主要材质:黄铜
- 表面处理:超黑铬
- 螺距:0.4公厘
- 承受负载:9.8N (1.0kgf)
- 移动精度/直线度:20μm
- 允许的力矩负载/间距:0.05N·m
- 允许的力矩负载/滚动:0.05N·m
- 允许的力矩负载/偏航:0.02N·m
- 瞬间刚性/俯仰:?
- 瞬间刚性/滚动:?
- 平行:100μm
- 质量:0.04公斤
- 符合RoHS标准的产品
相关产品推荐
您可能还对以下产品感兴趣
生命科学/分析仪器

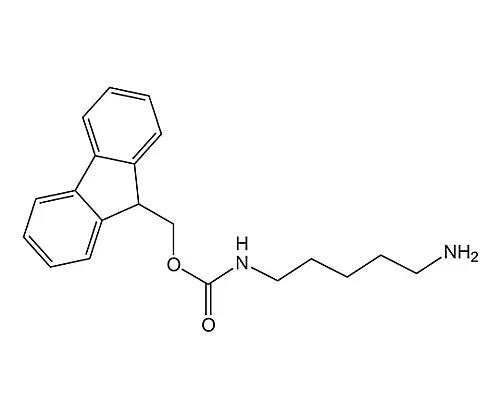

61-0384-54 ［已停用］单Fmoc1,5-二氨基戊烷盐酸盐851068 25G 8510680025
