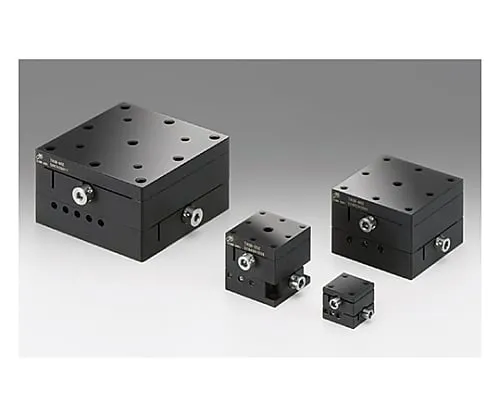

61-6972-20 XY轴区块舞台尺寸15 x 15公厘 TASB-152
生命科学/分析仪器

61-6972-20 XY轴区块舞台尺寸15 x 15公厘 TASB-152

型号: 61-6972-20
品牌: SIGMAKOKI CO., LTD.

产品描述

产品型号: 61-6972-20产品品牌: SIGMAKOKI CO., LTD. 功能 Ant groove […]

联系我们

咨询热线

18866622123

微信咨询

微信号: AHY97319570

微信二维码

产品详细内容

产品型号: 61-6972-20
产品品牌: SIGMAKOKI CO., LTD.

功能

  • Ant groove guide/screw feed adjustment system, block stage suitable for device integration application.
  • It is also ideal for places where the frequency of operation is relatively small, for fine adjustment, and for completely fixed places.
  • Because of the block shape with as few adjustment knobs and protrusions as possible, installation space can be minimized.
  • Hex wrench with knob and clamp wrench are included.

规格

  • 表格曲面大小:15 x 15 mm
  • 移动量:±2 mm
  • 移动指南:Dovetail方法
  • 主要材质:黄铜
  • 表面处理:黑色哑光
  • 螺距:0.4公厘
  • 承受负载:9.8N (1.0kgf)
  • 移动精度/直线度:10μm
  • 允许的力矩负载/间距:0.5N·m
  • 允许的力矩负载/滚动:0.5N·m
  • 允许的力矩负载/偏航:0.2N·m
  • 力矩刚度/螺距:15′′/N·cm
  • 矩刚度/辊:15′′/N·cm
  • 平行:100μm
  • 质量:0.03公斤
  • 符合RoHS标准的产品

相关产品推荐

您可能还对以下产品感兴趣

61-0292-89 铜粉,粒径:   >   63μm (<   230 Mesh ASTM) Emsure (TM) 102703 1公斤 1.02703.1000
生命科学/分析仪器

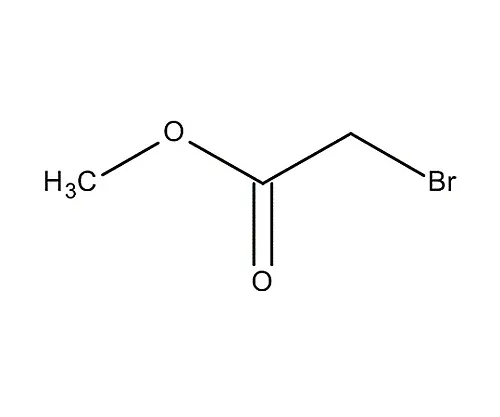

61-0360-12 [已停用]用于合成的甲基溴乙酸酯820196 250mL 8.20196.0250
生命科学/分析仪器

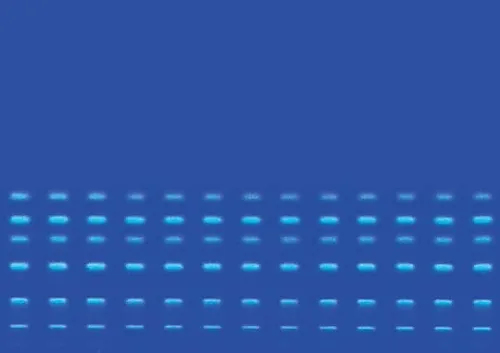

61-0313-81 HPTLC玻璃板Lichrospher (R) Si60F254S 25张, 20 x 10 cm 115445 1 ST 1.15445.0001
