产品详细内容

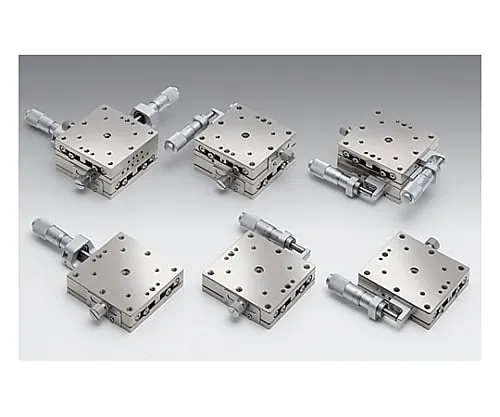

产品型号: 61-6969-26
产品品牌: SIGMAKOKI CO., LTD.
功能
- It is a high-precision and high-rigidity stainless steel stage with direct guide processing applied to the quenched stainless steel stage body and moving table.
- The body material is equivalent to SUS440 C, and the surface is treated with electroless nickel plating for excellent rust prevention.
- The exterior is available in black with a super black chrome (part number end B) surface treatment.
- For the TSDH series (□ 60 mm), you can select the opposing clamp with the option code (end: OC).
- (+ 3,000 yen per 1 shaft) * * Depending on the part to which the micrometer head is fixed or the type of micrometer head, the head may protrude from the top of the stage.
- * Please note that depending on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
规格
- X轴通用不锈钢工作台，工作台尺寸□ 60 mm< 通用规格]
- 表格曲面大小:60 x 60 mm
- 移动量:±6.5公厘
- 移动指南:球指南
- 主要材质:不锈钢表圈 (SUS440C) 当量
- 表面处理:无电镍(零件编号字尾B:超黑铬色)
- 承受负载:392N (30.0kgf)
- 移动精度/直线度:1μm
- 移动精确度/俯仰:25英寸
- 移动精度/偏航:15英寸
- 允许力矩负载/螺距:13.2N·m
- 允许的力矩负载/滚动:14.7N·m
- 允许的力矩负载/偏航:9.8N·m
- 力矩刚度/螺距:0.2′′/N·cm
- 矩刚度/辊:0.13′′/N·cm
- 力矩刚度/偏航:0.16′′/N·cm
- 平行:30μm
- 运动平行度:10μm
- 【个别规格】
- 微操作位置:中心
- 移动量/1旋转:0.5公厘
- 微米最小读数:0.01公厘
- 质量:0.45公斤
- 符合RoHS标准的产品
