产品详细内容
产品型号: 61-6968-35
产品品牌: SIGMAKOKI CO., LTD.
功能

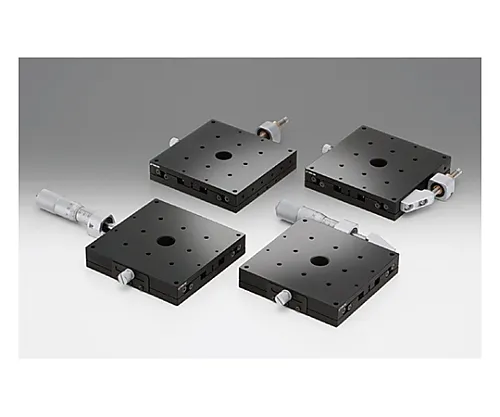

- Quenched steel stage body and moving table are directly guided for extremely durable direct movement stage.
- Products with FP at the end of the part number use fine pitch screws.
- Please note that this is not an ordinary micrometer head.
- When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
- The digital micrometer head (MHN2-25M) used in the TSD-1001CDG is made by Mitsutoyo.
- * Depending on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
- * Please note that depending on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
规格
- [>X轴钢工作台，工作台尺寸□ 100 mm< 通用规格]
- 表格曲面大小:100 x 100 mm
- 移动量:±12.5mm
- 移动指南:球指南
- 主要材料:铁
- 表面处理:超黑铬
- 承受负载:588N (60.0kgf)
- 移动精度/直线度:0.5μm
- 移动精确度/俯仰:25英寸
- 移动精度/偏航:15英寸
- 允许力矩负载/螺距:35.0N·m
- 允许的力矩负载/滚动:41.7N·m
- 允许的力矩负载/偏航:32.0N·m
- 力矩刚度/螺距:0.02′′/N·cm
- 矩刚度/辊:0.01′′/N·cm
- 力矩刚度/偏航:0.02′′/N·cm
- 平行:20μm
- 运动平行度:8μm
- 【个别规格】
- 微操作位置:中心
- 移动量/1旋转:0.5公厘
- 微米最小读数:0.01公厘
- 质量:1.5公斤
- 符合RoHS标准的产品
