产品详细内容

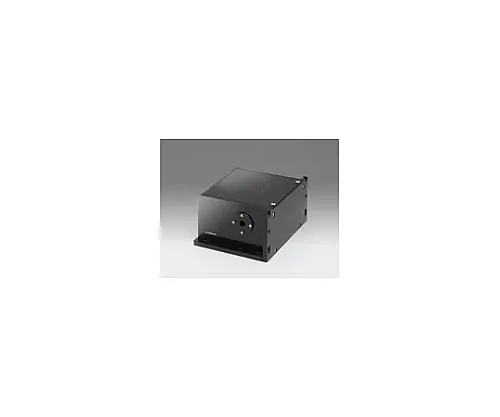

产品型号: 61-6958-72
产品品牌: SIGMAKOKI CO., LTD.
功能
- The light quantity of the high-power laser can be continuously varied, and high transmittance stability can be obtained.
- Using the polarization characteristics of the laser beam, the transmitted light quantity of the CW/pulse laser is continuously variable.
- Laser light that is not transmitted is safely absorbed by the diffuser and released as heat.
- The effect of heat generation of the diffuser on the transmitted light quantity is very small.
- Various controllers for remote operation (sold separately)
- The exit polarization direction can be changed to horizontal or vertical by changing the installation surface.
- Please inquire about the controller for remote operation.
规格
- [>可变衰减器< 通用规格]
- 发生有效直径:φ8mm
- 在峰值的1/e2强度下测量入射光束直径*:φ4mm*规定的高斯光束直径。为了渗透高斯分布的整个区域,需要两倍于入射光束直径的有效直径。
- 对应输出:20W
- 【个别规格】
- 自适应波长:266 nm
- 雷射耐久性:1.0J/cm2
- 透射率调整范围:2~88% (取决于激光束的偏振状态)
相关产品推荐
您可能还对以下产品感兴趣

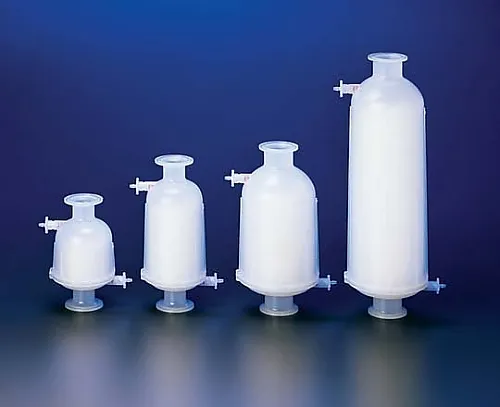

61-0243-20 OpticapXL10Polysep II 1.0/1.2μm 1.5英寸。TC/TC 1/Pk1ST KGW2A10TT1
