产品详细内容

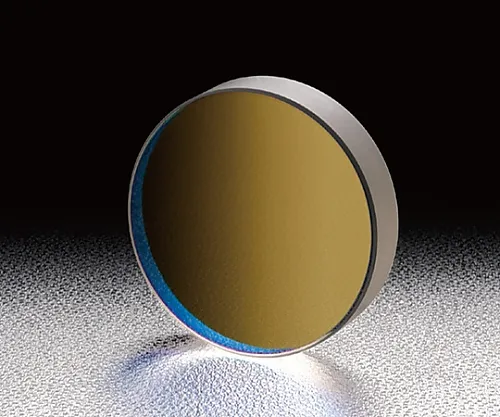

产品型号: 61-6871-05
产品品牌: SIGMAKOKI CO., LTD.
功能
- A special mirror with negative wavelength dispersion.
- It can be used for dispersion compensation of femtosecond laser resonators.
- It cancels out the wavelength dispersion in the resonator by sending light back and forth multiple times between two negative dispersion mirrors.
- It is more compact than wavelength dispersion compensation by prism.
- Two types of shapes are available: flat board and cavity concave board.
- We also have a Surface Accuracy Guarantee Mirror (HTFM) that guarantees surface accuracy after coating.
- * Since it is used for 0° to 20° incidence, the dispersion may not be corrected at other incidence angles.
- * The reflectivity of the specification indicates the reflectivity of 0° incidence.
规格
- [>毫微微负色散反射镜<> 通用规格]
- 材质:BK7
- 涂层:电介质多层膜
- 发生角度:0°-20°
- 基板表面精度:λ/10
- 平行: > 5英寸 (平面)
- 10?5
- 有效直径:外径的80%
- 背面:抛光曲面
- 【个别规格】
- 自适应波长:700 -900 nm
- 外径φD:φ12.7mm
- 厚度t:5公厘
- 曲率半径r:∞
- 反射率:>99.8%
- 雷射耐久性*:0.5J/cm2
- *雷射脉冲宽度50 fs,波长800 nm
- 符合RoHS标准的产品
相关产品推荐
您可能还对以下产品感兴趣
生命科学/分析仪器
62-8392-01 ［已停用］Akt/mTOR/S6K路径探索者抗体MiniPack;3瓶/Pk/Pk 15-104
型号: 62-8392-01
品牌: Sigma Aldrich Japan(Millipore)
生命科学/分析仪器

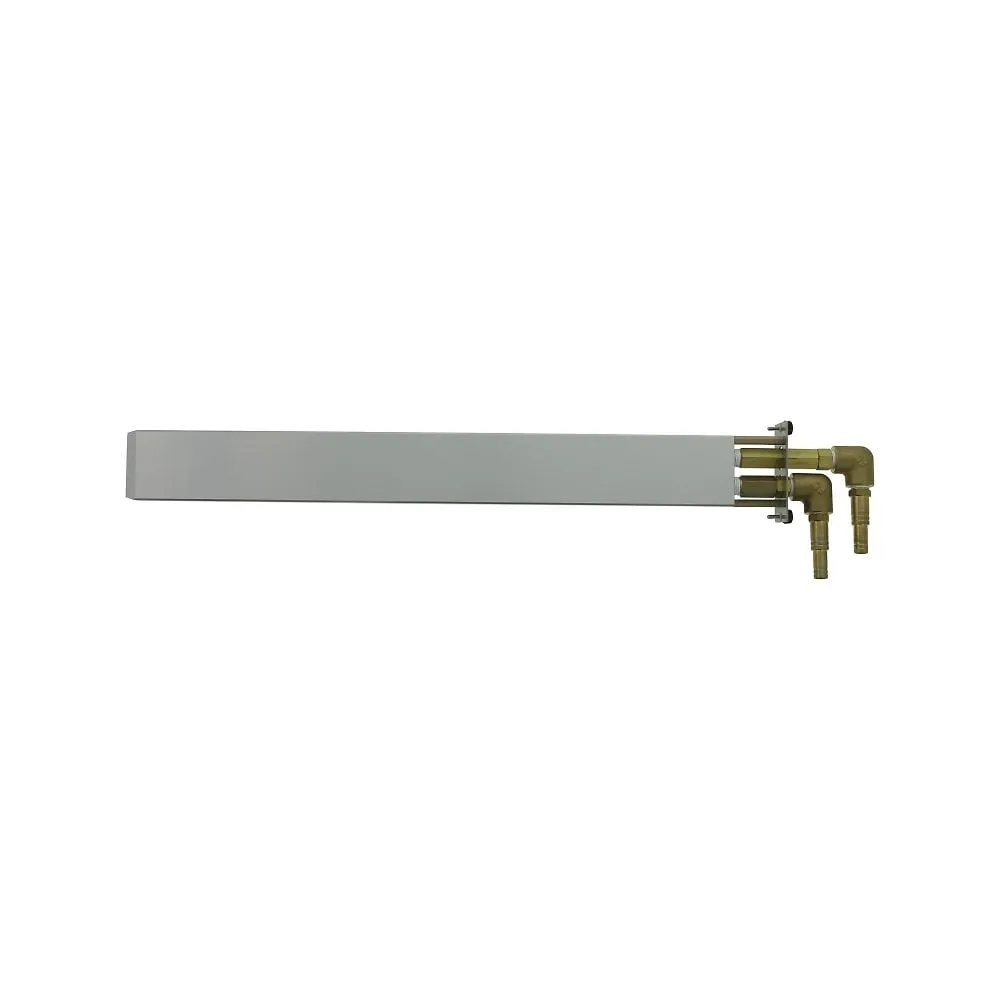

61-4428-71 CPP/CPG Type 4机架的冷却磁带匣 054310-2111
