产品详细内容

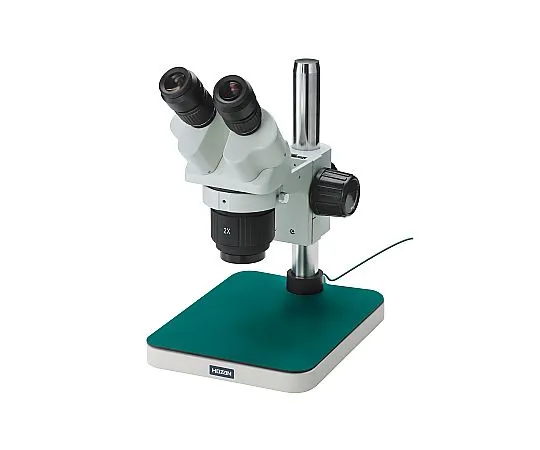

产品型号: 61-0485-92
产品品牌: HOZAN TOOL INDUSTRIAL CO., LTD.
功能
- Fixed-magnification stereomicroscope with low price
- Fixed-magnification stereomicroscope for a wide range of tasks in the field of electronic equipment.
- Cost was reduced while maintaining a long operating distance and a wide field of view.
- A conductive color mat for static electricity protection and a lens filter to protect the objective lens from solder smoke are standard.
- The standard magnification is 10/20. By using optional eyepieces and conversion lenses, you can get a 5~80 times wider field of view.
规格
- 重量:3.8公斤
- 操作距离:84公厘(镜头滤镜,安装环时)
- 总放大率:10 x、20 x
- 物镜:1×2×
- 目镜:WF10x (L-546-10)
- 屈光度调节:左右独立设定,±5Dptr
- 焦点调整:镜筒上下组合 (可移动范围50公厘)
- 镜筒类型:双眼45°倾斜镜筒
- 眼宽调整范围:54 -75公厘,左右互锁组合
- 基本尺寸:200 (W) x 255 (D) mm
- 支柱高度:282公厘
- 从镜头中心到支柱:133公厘
- 配件:夹头 (固定金属配件) 2个眼杯 (2种)
相关产品推荐
您可能还对以下产品感兴趣

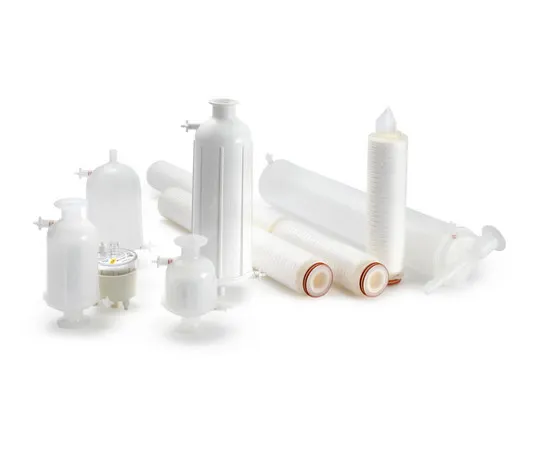

61-0250-67 [已停用]光学贴图Gamma相容XLT10Durapore 0.22μm 1.5 in TC/TC W/Gauge Port;1 Pk1ST KVGLG1ZTT1
