产品详细内容

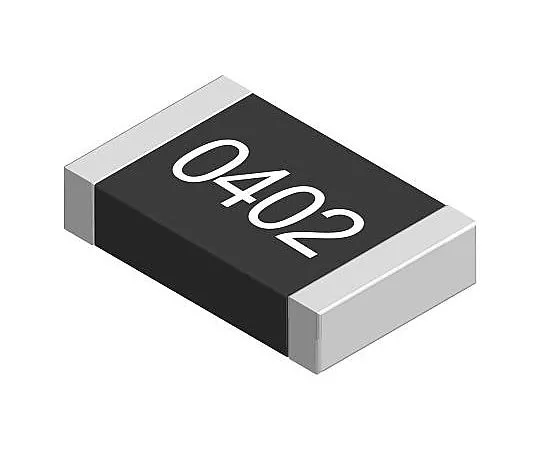

产品型号: 63-4902-11
产品品牌: KOA
功能
- AEC-Q200 Certified 0402 Thick Chip Resistor, RK73H Series 1% KOA's RK73H Series Precision Resistor is a compact and lightweight solution.
- This precision resistor with a three-layer electrode structure has excellent reliability and high stability.
- The use of metal glaze thick film provides excellent weather and heat resistance.
- This precision resistor is ideal for both flow and reflow soldering and is used in automatic mounting machines.
- All RK73H chip resistors except the 01005 case size are AEC-Q200 certified and suitable for automotive applications.
- Small, lightweight, stable and reliable lead-free terminal jumper resistor is also included.
规格
- 数量:1袋 (100个)
- 电阻:51Ω
- 技术:厚膜
- 包装/外壳:0402
- 容忍度:±1%
- 额定功率:0.1 W
- 温度系数:±100 ppm/deg。
- 尺寸:1 x 0.5 x 0.35 mm
- 深度:0.5 mm
- 工作温度最小值:-55°C
- 工作温度mAx:+155°C
- 外壳样式:模具
- RoHS合规性状态:合规性
- 证券代码:631 -7786
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备

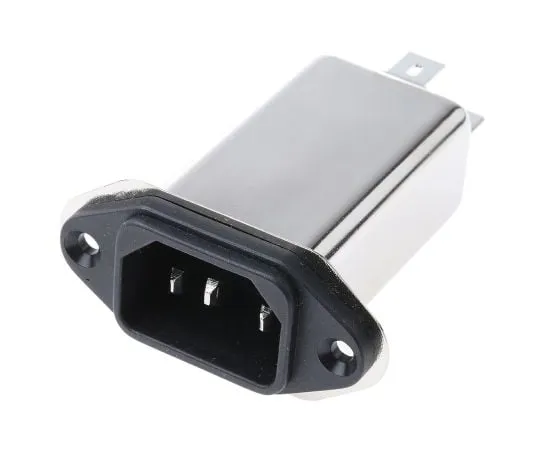

63-4992-82 公制C14IEC过滤板安装，Faston,额定6A, 250 V交流工作频率直流至400Hz FN9233UF2-6-06
型号: 63-4992-82
品牌: Schaffner
电子元件控制设备
电子元件控制设备
电子元件控制设备

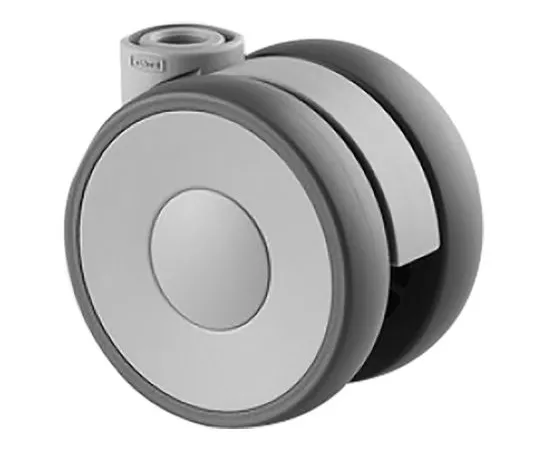

63-6984-46 TenteSwivelCastor5920UAP065L51-10, 90 kg, 180 (静态) kg, PUR轮胎 5920UAP065L51-10
