产品详细内容

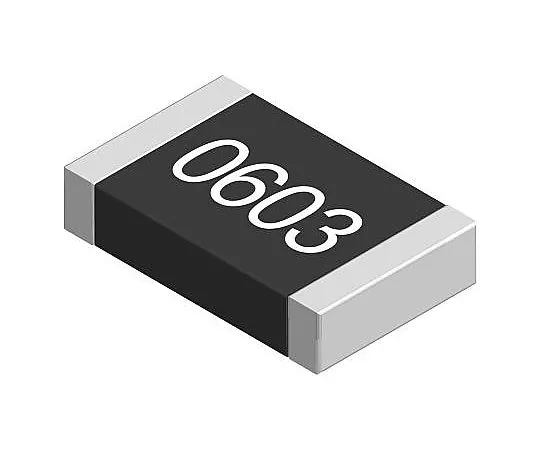

产品型号: 63-4901-77
产品品牌: KOA
功能
- AEC-Q200 Certified 0603 Thick Chip Resistor, RK73H Series 1% KOA's RK73H Series Precision Resistor is a compact and lightweight solution.
- This precision resistor with a three-layer electrode structure has excellent reliability and high stability.
- The use of metal glaze thick film provides excellent weather and heat resistance.
- This precision resistor is ideal for both flow and reflow soldering and is used in automatic mounting machines.
- All RK73H chip resistors except the 01005 case size are AEC-Q200 certified and suitable for automotive applications.
- Small, lightweight, stable and reliable lead-free terminal jumper resistor is also included.
规格
- 数量:1袋 (50个)
- 电阻:750 kΩ
- 技术:厚膜
- 包装/外壳:0603
- 容忍度:±1%
- 额定功率:0.1 W
- 温度系数:±100 ppm/deg。
- 长度:1.6 mm
- 高度:0.45 mm
- 工作温度最小值:-55°C
- 工作温度mAx:+155°C
- 外壳样式:模具
- RoHS合规性状态:合规性
- 证券代码:631 -7089
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备

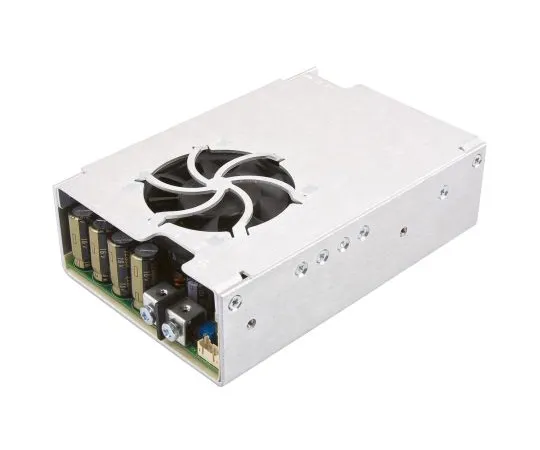

63-6858-20 AC/DC Converter 28 V dc 14.2 A 400 W with case Y FCM400PS28
型号: 63-6858-20
品牌: XP Power
电子元件控制设备

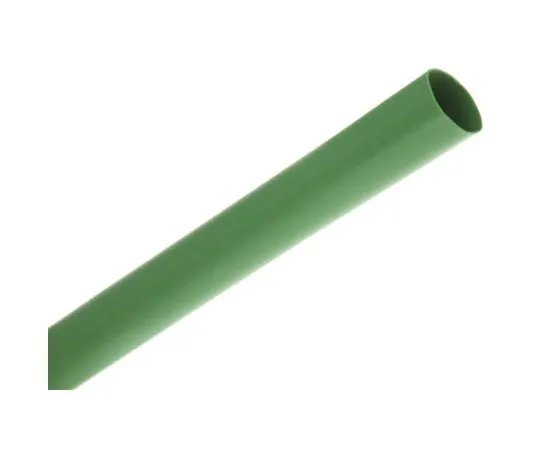

63-7508-14 TEConnectivity绿色无热收缩管9.5mm袖罩。x 1.2米长，RNF-100系列2:1比例 RNF-100-3/8-5-STK
型号: 63-7508-14
品牌: TE Connectivity
电子元件控制设备

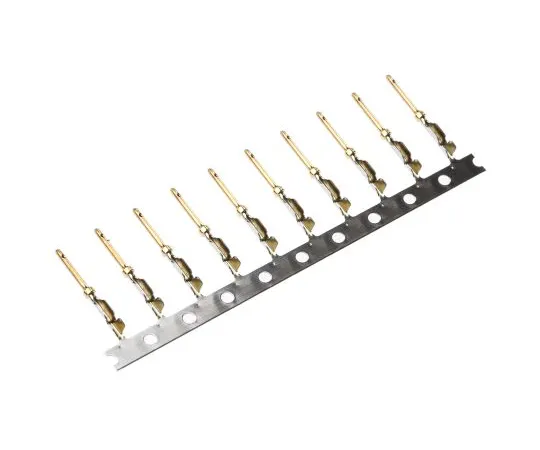

63-6668-85 RS PRO男性卡箍D-subConnectorContact, Gold, Tin, 28→24 AWG 481-471
