产品详细内容
产品型号: 63-4899-79
产品品牌: KOA
功能

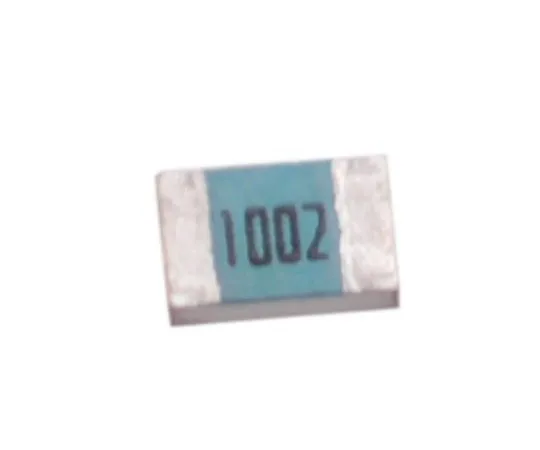

- AEC-Q200 Certified 0805 Thick Chip Resistor, RK73H Series 1% KOA's RK73H Series Precision Resistor is a compact and lightweight solution.
- This precision resistor with a three-layer electrode structure has excellent reliability and high stability.
- The use of metal glaze thick film provides excellent weather and heat resistance.
- This precision resistor is ideal for both flow and reflow soldering and is used in automatic mounting machines.
- Except for the 01005 case size, all RK73H chip resistors are AEC-Q200 certified and suitable for automotive applications.
- Small, lightweight, stable and reliable lead-free terminal jumper resistor is also included.
规格
- 数量:1袋 (50个)
- 电阻:2.2 kΩ
- 技术:厚膜
- 包装/外壳:0805
- 容忍度:±1%
- 额定功率:0.25 W
- 温度系数:±100 ppm/deg。
- 长度:2 mm
- 深度:1.25 mm
- 工作温度最小值:-55°C
- 工作温度mAx:+155°C
- 外壳样式:模具
- RoHS合规性状态:合规性
- 证券代码:631 -4771
