产品详细内容

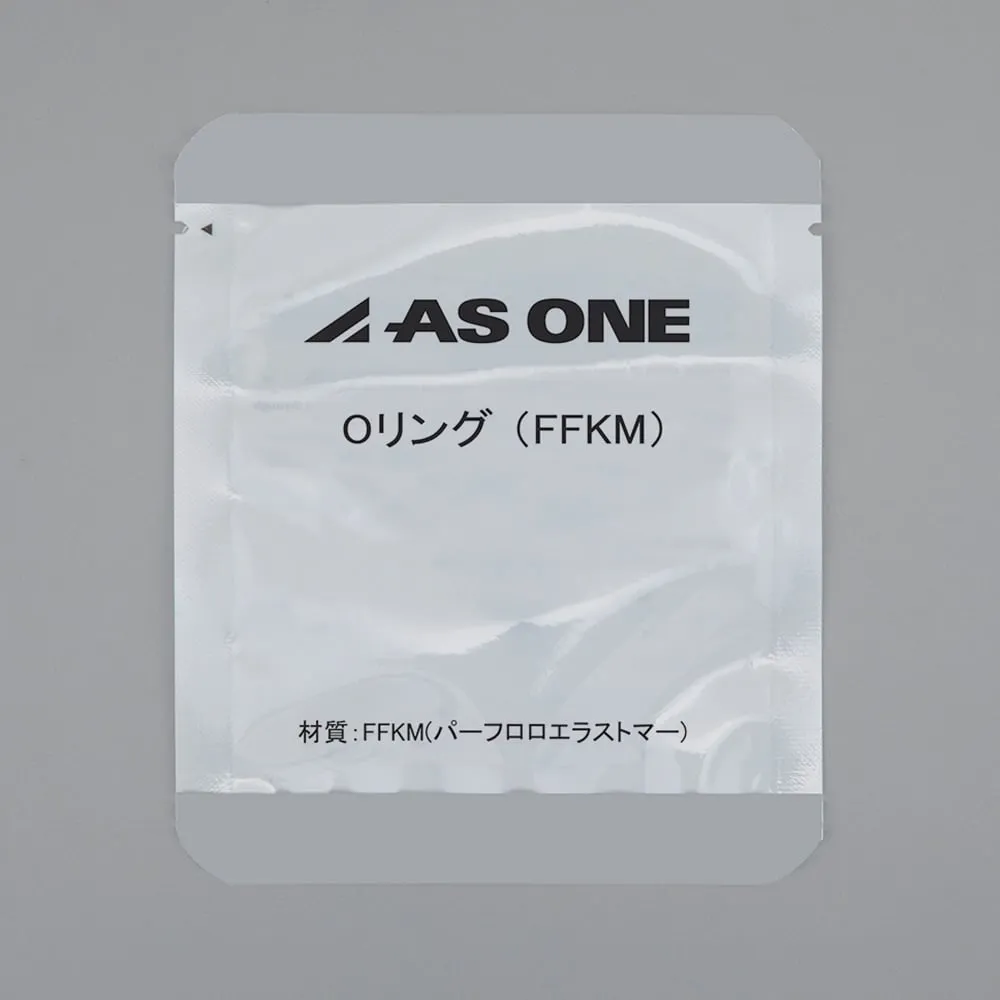

产品型号: 4-6521-01
产品品牌: AS ONE Corporation
功能
- It has excellent physical properties such as chemical resistance against various fluids and low compression set in high temperature conditions, making it suitable for sealing for fixation and motion.
规格
- Standard: P-3
- Inner Diameter/Wire Diameter (φmm): 2.8/1.9
- Material: FFKM (Perfluoro Elastomer from Syensqo)
- Heat-resistant Standard: 315°C
- Hardness (b): 76
- 100% modulus (a): 10.8Mpa
- Tensile strength (a): 17.4Mpa
- Growth rate (a): 142%
- Compression set (c) (70hr at250 degrees C): 22%
- ※(a)ASTM D412(dumbbell test specimens)(b)ASTM D2240(pellet test specimens)(c)ASTM D395B(AS568 #214 O-Ring test specimens)
- *It is not a guaranteed value.
