产品详细内容

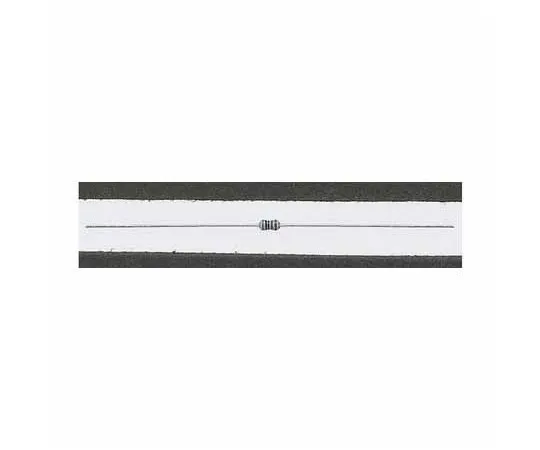

产品型号: 63-4829-26
产品品牌: KOA
功能
- UL1676 c-UL (CAS-C22.2 No. 1-M94) (File No. E159326) (RK only) AEC-Q200 Certified Metal Film Resistors, 0.25 W, 1% (1/8 W Type), MFS1/4C Series
- KOA MF Series are axially terminated precision resistors.
- This series offers a variety of resistance values.
- The MF through-hole resistor with lead-free termination is ideal for use in automatic mounting machines.
- The MFS type has twice the power rating of the standard body type.
- The MF1/4, MFS1/4, and MFS1/2 types are AEC-Q200 certified and suitable for automotive applications.
规格
- 数量:1袋 (20个)
- 电阻:82Ω
- 额定功率:0.25 W
- 容忍度:±1%
- 技术:金属涂层
- 案例样式:形式
- 温度系数:±50 ppm/deg。
- 结束样式:轴向
- 尺寸:1.7 (迪亚。)x 3.4 mm
- 长度:3.4 mm
- 直径:1.7 mm
- 工作温度最小值:-55°C
- RoHS合规性状态:合规性
- 证券代码:491 -1099
