产品详细内容
产品型号: 63-4806-89
产品品牌: Copal Electronics
功能

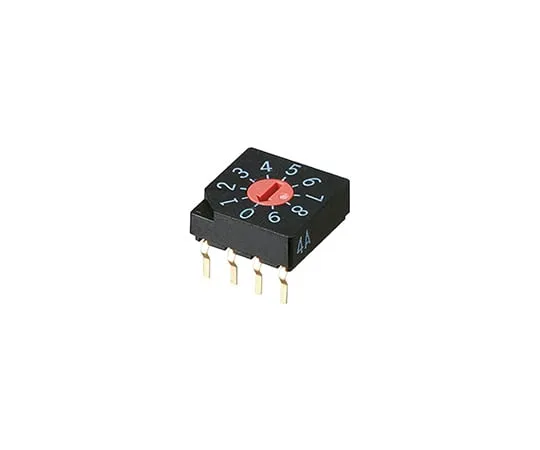

- Rotary cord switch, SC-1000/2000 series
- Lead-free compatible product, clear click by metal spring Thin 3.9 mm thick, high-density mounting is possible (10 mm square) High reliability by gold-plated contact withstand voltage: 250 V AC 50 Hz 60 s 4-1 terminal array (SC series)
规格
- Number of Pieces: 1
- Contact current rating: 100 mA @ 5 V dc
- Contact Material: Copper Alloy, Gold Plated
- Number of positions: 10
- Mounting Type: PCB
- Actuator Type: Rotary Flash
- package styles: DIP
- Operating temperature mAx: +85°C
- Operating temperature Min: -25°C
- Operating temperature range: -25 → +85°C
- Insulation capacity: 250 V ac
- RoHS Compliance Status: Compliance
- Securities Code: 473-2420
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备

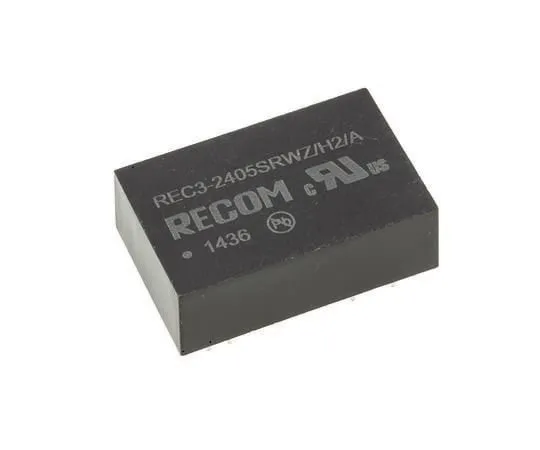

63-7672-09 回收REC3 3W隔离直流-直流转换器通过孔，电压在9→36 V直流，电压出5V直流医疗批准 REC3-2405SRWZ/H2/A
型号: 63-7672-09
品牌: Recom
电子元件控制设备

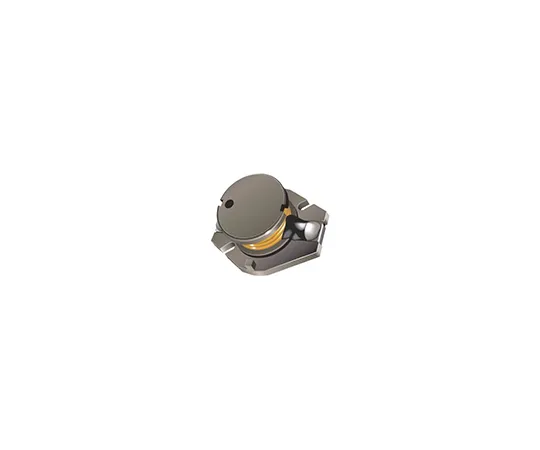

63-5030-29 BournSDR1005系列1005线绕SMD电感器，铁氧体核心，100μH±10%线绕1AIdc Q:41 SDR1005-101KL
