产品详细内容

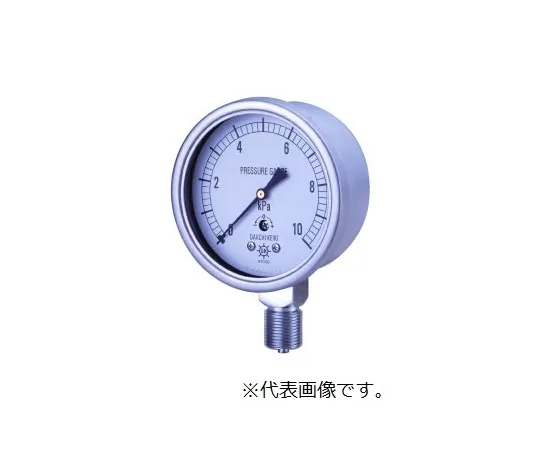

产品型号: 67-4848-16
产品品牌: Daiichi Keiki Mfg
功能
- This is an indicator equipped with a mechanism for measuring micropressures below 50 kPa, which cannot be measured with Bourdon tube pressure gauges. This product uses a chamber (two corrugated plates) for the pressure receiving element.
规格
- Case External Shape: A Type
- Magnitude: Φ75
- Connecting Screws: G3/8
- Accuracy: ±2.5% F.S
- Pressure span: 0~30KPA
- Material: Connection Part Material; Brass/Case Material; SUS304
- Securities Code: 119-0170742
