理化检测
65-3535-78 ［Out of stock］Pipe Inner Surface Type Temperature Sensor Model 305 with ISO Document -50~220°C Approx. 100° E Type 305E-TC1-ASP
产品描述
产品型号: 65-3535-78产品品牌: ANRITSU METER CO., LTD. 功能 Model […]
联系我们
产品详细内容
产品型号: 65-3535-78
产品品牌: ANRITSU METER CO., LTD.
功能

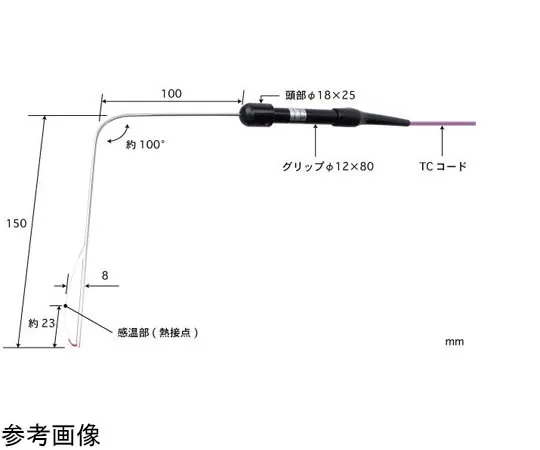

- Model 305/344 is a pipe inner surface type temperature sensor capable of measuring the inner surface of pipes with an inner diameter of 8 mm or more.
- [Application] Temperature measurement of pipe inner surface, etc.
规格
- Material: Pipe Material/Stainless Steel (SUS304), Grip Material/Black Phenol Resin
- Operating temperature range (°C): -50~220
- Tolerance at 0~100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: Over thousands of cycles
- Pipe Shape: Approx. 100°
- Thermocouple Type: E Type
- Code Type: Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 200°C
- Document content: Inspection report, calibration certificate, traceability system diagram
相关产品推荐
您可能还对以下产品感兴趣
理化检测
理化检测

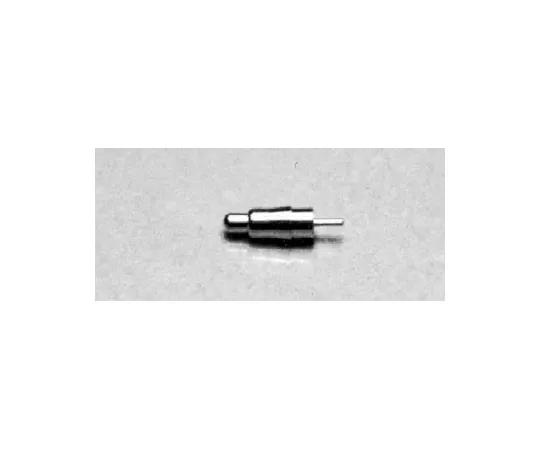

63-3031-62 ［Discontinued］Bean Spring Probe VN Series (10 pieces) VN-3-1*10
