产品详细内容
产品型号: 65-3535-57
产品品牌: ANRITSU METER CO., LTD.
功能

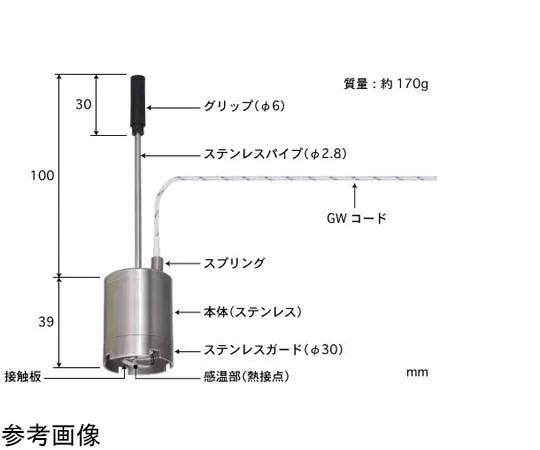

- The WE series can easily measure the temperature by placing it on the sensor due to the weight of the sensor itself.
- [Application] For measuring the surface temperature of hot plates
规格
- Material: Main Material/Stainless Steel (SUS303)
- Operating temperature range (°C): -50~500
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1
- Durability: 50,000 cycles or more
- Head Size: Type 24
- Type of thermocouple: Type E
- With/without grip: None
- Cord length (m): 1
- Cord Outer Diameter (mm): 1.2 x 1.7
- Coating Material: Glass Fiber
- Heat-resistant Temperature (°C): 300
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 300, 500°C
- Document content: Inspection report, calibration certificate, traceability system diagram
相关产品推荐
您可能还对以下产品感兴趣
理化检测
理化检测

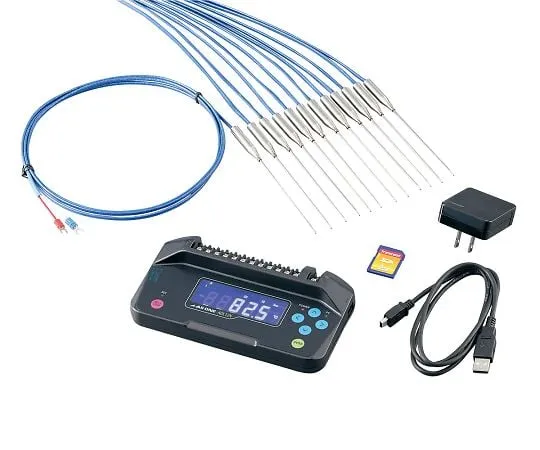

3-645-11-20 12 CH Data Logger Start Set with Calibration Certificate ADL12NK12
型号: 3-645-11-20
品牌: AS ONE Corporation
理化检测
理化检测

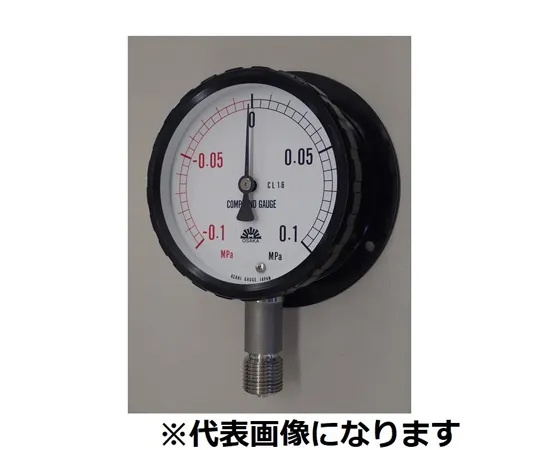

65-3468-69 Closed type Coupled Meter Type B Pressure Range (MPA): -0.1~0.1 315-B350X0.1-0.1MPA
