产品详细内容
产品型号: 65-3535-47
产品品牌: ANRITSU METER CO., LTD.
功能
- VA series is a clip type surface temperature sensor.
- Measure the surface temperature of the outer surface of the pipe.
- [Application] Surface temperature measurement of heat pipes
规格
- Operating temperature range (°C): -50~300
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Corresponding Diameter (φmm): 6
- Type of thermocouple: Type E
- Length of connecting wire (mm): 100
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 200, 300°C
- Document content: Inspection report, calibration certificate, traceability system diagram
相关产品推荐
您可能还对以下产品感兴趣
理化检测
1-3234-06-20 ［Discontinued］Temperature Data Logger Testo 176 H2 with Calibration Certificate 0572.1766
型号: 1-3234-06-20
品牌: AS ONE Corporation
理化检测
65-4292-96-20 Sealed Pressure Gauge (60Φ) Vertical A Frame with 0.16 MPa with Inspection Certificate BA10-171
型号: 65-4292-96-20
品牌: NAGANO KEIKI Co., Ltd.
理化检测
2-7673-02-20 ［Discontinued］Drip-Proof Pen Type Thermometer with Calibration Certificate CT-414WR
型号: 2-7673-02-20
品牌: CUSTOM corporation
理化检测

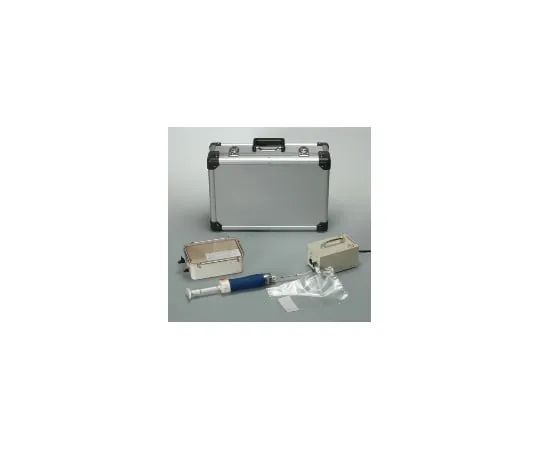

63-5598-78 VOC Simple Measurement Set VOC-1
