65-3535-37 ［Out of stock］Built-in Temperature Sensor for Moving Rotating Surface UH Series with ISO Document -50~210°C Type 16 E Type UH-16E-03-TS1-W
产品描述
产品型号: 65-3535-37产品品牌: ANRITSU METER CO., LTD. 功能 The UH […]
联系我们
产品详细内容
产品型号: 65-3535-37
产品品牌: ANRITSU METER CO., LTD.
功能

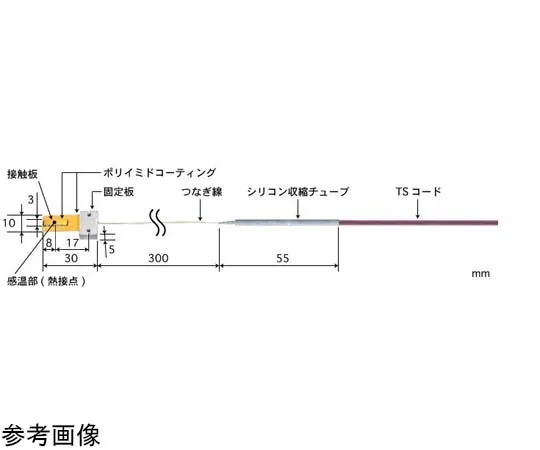

- The UH series is a built-in temperature sensor for moving and rotating surfaces suitable for measuring the surface temperature of rollers in narrow areas.
- [Application] Surface temperature control and temperature measurement of printer roller, etc.
规格
- Operating temperature range (°C): -50~210
- Tolerance at 0~100 deg. C (deg. C): ±2.5
- Response Time (sec): 4
- Fixing plate shape: Type 16
- Thermocouple Type: E Type
- Length of connecting wire (mm): 300
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Off
- Calibration Temperature Point: 100, 200°C
- Document content: Inspection report, calibration certificate, traceability system diagram
