65-3535-35 ［Out of stock］Built-in Temperature Sensor for Moving Rotating Surface UH Series with ISO Document -50~210°C Type 12 E Type UH-12E-03-TS1-W
产品描述
产品型号: 65-3535-35产品品牌: ANRITSU METER CO., LTD. 功能 The UH […]
联系我们
产品详细内容
产品型号: 65-3535-35
产品品牌: ANRITSU METER CO., LTD.
功能
- The UH series is a built-in temperature sensor for moving and rotating surfaces suitable for measuring the surface temperature of rollers in narrow areas.
- [Application] Surface temperature control and temperature measurement of printer roller, etc.
规格
- Operating temperature range (°C): -50~210
- Tolerance at 0~100 deg. C (deg. C): ±2.5
- Response Time (sec): 4
- Fixing plate shape: Type 12
- Thermocouple Type: E Type
- Length of connecting wire (mm): 300
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Off
- Calibration Temperature Point: 100, 200°C
- Document content: Inspection report, calibration certificate, traceability system diagram
相关产品推荐
您可能还对以下产品感兴趣
理化检测
61-0105-36-56 testo 470 with English Calibration Certificate 05630470
型号: 61-0105-36-56
品牌: Testo K. K.
理化检测
65-3491-54 Sealed Coupled Meter D Type Heat-Resistant Vibration-Resistant Pressure Range (MPA): -0.1~0.1 315-D451X0.1-0.1MPA-HV
型号: 65-3491-54
品牌: Asahi Gauge Manufacturing
理化检测
理化检测

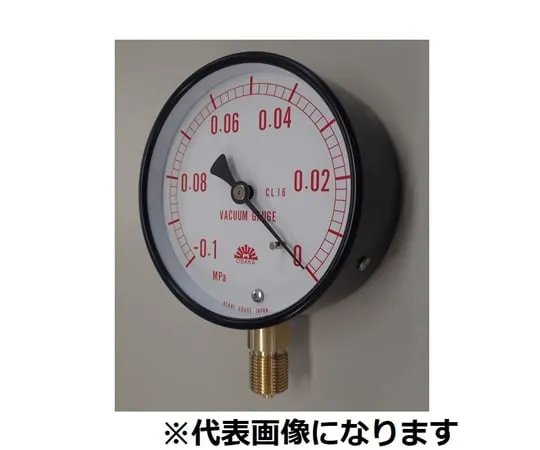

65-3439-76 Bourdon Tube Vacuum Gauge A Pressure Range (MPA): -0.04~0 101-A630X-0.04MPA
