65-3535-22 ［Out of stock］Temperature Sensor for Moving/Rotating Surface U Series with ISO Document -50~250°C 25 x 32 mm K Type U-111K-01-D0-1-TC1-ASP
产品描述
产品型号: 65-3535-22产品品牌: ANRITSU METER CO., LTD. 功能 U-seri […]
联系我们
产品详细内容
产品型号: 65-3535-22
产品品牌: ANRITSU METER CO., LTD.
功能
- U-series is a temperature sensor for moving/rotating surfaces suitable for measuring the temperature of moving/rotating surfaces.
- [Application] Surface temperature control of laminate roller
规格
- Material: Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~250
- Tolerance at 0~200 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: Over 1500 hours
- Head Size (mm): 25 x 32
- Head Shape: Guard Type (Teflon)
- pipe shapes: straight, parallel
- Thermocouple Type: K Type
- Pipe length (mm): 100
- guard shapes: for planar faces
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 200°C
- Document content: Inspection report, calibration certificate, traceability system diagram
相关产品推荐
您可能还对以下产品感兴趣
理化检测
68-0834-11 UST All Stainless Steel Pressure Gauge 0.05MPA 100 φR 1/2 UST-AUR12-100X0.05MPA
型号: 68-0834-11
品牌: Daiichi Keiki Mfg
理化检测

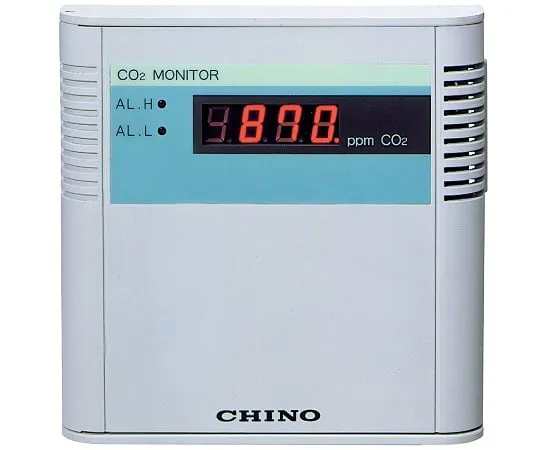

67-4913-65 Maseries Solid Electrolyte System With Wall-Mounted Co2 Monitor Alarm Function 1~5 V 0.01~10.00% MA1001-10
