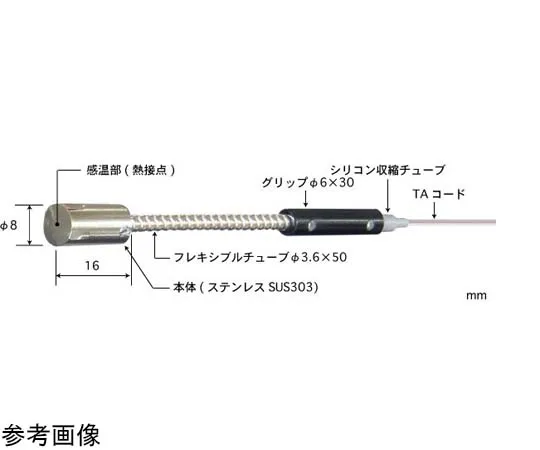

65-3533-70 ［Out of stock］Temperature sensor with built-in magnet MG Series ISO document set -50~250°C Head shape: Type 33 Type E MG-33E-TA1-ASP
产品描述
产品型号: 65-3533-70产品品牌: ANRITSU METER CO., LTD. 功能 The MG […]
联系我们
产品详细内容
产品型号: 65-3533-70
产品品牌: ANRITSU METER CO., LTD.
功能
- The MG Series is a temperature sensor suitable for measuring surfaces that can be fixed with magnets, such as equipment and mold surfaces.
- [Application] Surface temperature measurement of motors and engines, etc.
规格
- Material: Main Material/Stainless Steel (SUS303)
- Operating temperature range (°C): -50~250
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: 50,000 cycles or more
- Head Shape: Type 33
- Type of thermocouple: Type E
- With/without grip: None
- Cord length (m): 1
- Cord Outer Diameter (φmm): 0.9
- Coating Material: Teflon
- Heat-resistant Temperature (°C): 200
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 200°C
- Document content: Inspection report, calibration certificate, traceability system diagram
