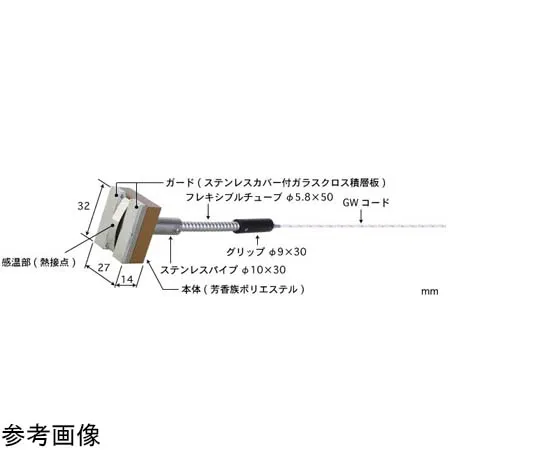

65-3533-64 ［Out of stock］Temperature sensor with built-in magnet MG series ISO document set -50~400°C Head shape: Type 64 Type E MG-64E-GW1-ASP
产品描述
产品型号: 65-3533-64产品品牌: ANRITSU METER CO., LTD. 功能 The MG […]
联系我们
产品详细内容
产品型号: 65-3533-64
产品品牌: ANRITSU METER CO., LTD.
功能
- The MG Series is a temperature sensor suitable for measuring surfaces that can be fixed with magnets, such as equipment and mold surfaces.
- [Application] Surface temperature measurement of motors and engines, etc.
规格
- Material: Guard Material/Glass Cloth Laminate with Stainless Steel Cover, Body Material/Aromatic Polyester
- Operating temperature range (°C): -50~400
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: 50,000 cycles or more
- Head Shape: Type 64
- Type of thermocouple: Type E
- With/without grip: None
- Cord length (m): 1
- Cord Outer Diameter (mm): 1.2 x 1.7
- Coating Material: Glass Fiber
- Heat-resistant Temperature (°C): 300
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 200, 400°C
- Document content: Inspection report, calibration certificate, traceability system diagram
相关产品推荐
您可能还对以下产品感兴趣
理化检测
理化检测

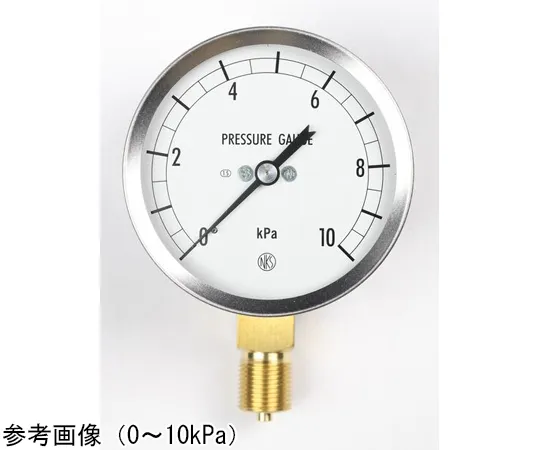

65-4317-54-20 Microbarometer (75Φ) with 10 kPa Inspection Certificate GL13-131
