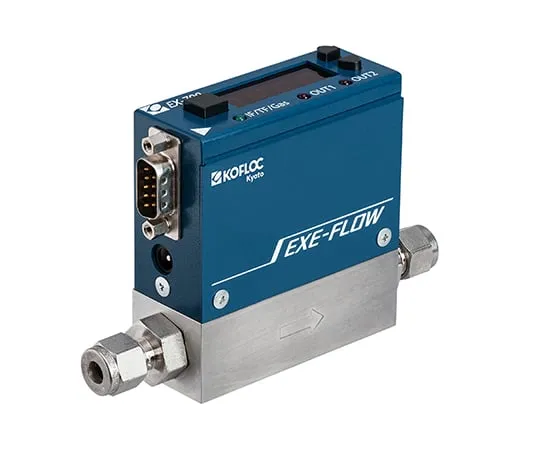

63-1203-56 ［Discontinued］Mass Flow Meter with Indicator MODEL EX-700 SERIES (with dedicated AC power adapter) EX700-O-RC14-N2-F1-20C-IPSK-85
产品描述
产品型号: 63-1203-56产品品牌: KOJIMA INSTRUMENTS INC. 功能 Meter […]
联系我们
产品详细内容
产品型号: 63-1203-56
产品品牌: KOJIMA INSTRUMENTS INC.
功能
- Meter only EX-700-O series.
- A digital mass flow meter with integrated display.
- Various functions such as gas type changeover function, instantaneous flow rate and accumulated flow rate changeover display function, alarm output function, etc.
- Can be driven by 24 V DC power supply (can be driven by 100 V AC with the supplied AC power adapter PSK -85)
规格
- Sensor type: Thermal sensor
- Needle valve: None
- Fluid: N2 (Switching by AIR, H2, HE, AR, O2, CO2, etc./CF conversion)
- Full Scale: F 1/10 CC/MIN (20 degrees atmospheres)
- Accuracy: +/- 1% F.S. (25 degrees C)
- Temperature Coefficient: +/- 0.2% F.S ./°C (15 ~ 35 degrees C)
- Voltage: 980 KPA (G)
- Gas Contact: SUS 316, SUS 316 L, PTFE, FKM
- Connection: RC 1/4
- Power requirement: 24 VDC (100 VAC can be driven by the included AC power adapter, PSK -85)
- Analog I/O: 4 -20 mA
- Communications: RS 485
