产品详细内容

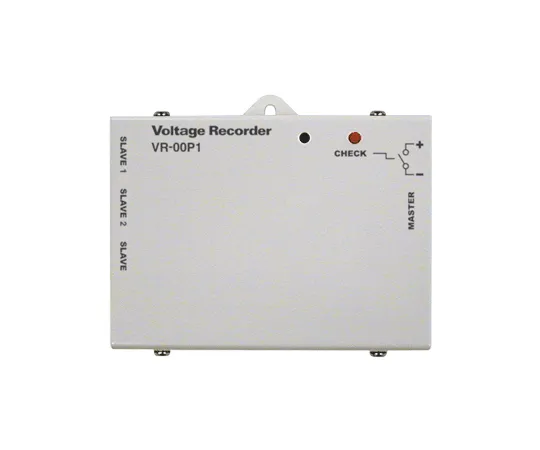

产品型号: 62-2699-14
产品品牌: T&D Corporation
功能
- The preheat function outputs ON/OFF signals to the power supply of the sensor according to the recording timing of the connected VR-71, and the synchronous recording function synchronously records up to 4 VR-71 units (2 cables are required).
规格
- Preheat function: Outputs ON/OFF signal to power supply such as sensor according to recording timing
- Synchronous recording: Up to 4 VR-71's recorded at the same time
- Preheat Output: 30 VDC 100 mA
- Terminal Contact Capacity: ON Resistance/MAX15Ω
- Power supply: 1 AA alkaline battery (LR6)
- Body Dimensions: H57mm x W95mm x D24mm Excluding Protrusion
- Weight: 230 g
- Accessories: AA alkaline battery (LR6), Wall attachment (TR-00K2), 2 unit connection cables (VR-1 C01 (15 cm)/VR-1C10 (1 m)), Owner's Manual (with warranty)
