产品详细内容
产品型号: 1-5826-11-20
产品品牌: AS ONE Corporation
功能
- Temperature control is an ON/OFF control method.
- As for the temperature display, the PV/SV two-stage display is adopted so that the measured value and the set value can be seen at a glance to prevent setting errors.
- Four timer functions (OFF, ON, ON/OFF and SET) are standard.
- Forward/reverse operation switching is possible.
- It is equipped with circuit protector, alarm output function and sensor malfunction detection function.
规格
- 型号:TC -1 NK
- 设定温度:摄氏100至600度
- 小显示单位:1°C
- 温度显示精确度:±0.5% (FS) ±1位数或3°C,以较大者为准
- 温度控制方法:ON/OFF控制
- 温度设定显示器:板键触摸系统、PV/SV数字两级显示器
- 传感器类型:K级热电偶 (φ4×200 mm)
- 连接容量:AC100V 50/60HzMAX 12 A (电阻负载) *不要将电感负载设备(马达，泵等。)直接连接到测试仪。
- 附加功能:计时器功能/设定范围:1分钟至99小时59分钟
- 安全功能:电路保护器 (15 A) ，报警输出功能，传感器异常检测
- 电源:AC100V 50/60Hz
- 主机尺寸:95 x 150.6 x 48.5公厘 (不含投影)
相关产品推荐
您可能还对以下产品感兴趣
理化检测
理化检测
理化检测
1-1995-01-57 Wide-range Solar Digital Thermometer with Chinese Calibration Certificate SN-1200
型号: 1-1995-01-57
品牌: NETSUKEN
理化检测

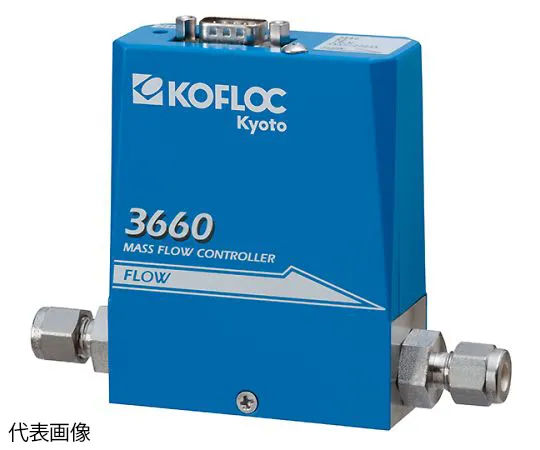

64-4273-32 Standard Mass Flow Controller MODEL 3660 SERIES 3665-RC38-CO2-50SLM-20
