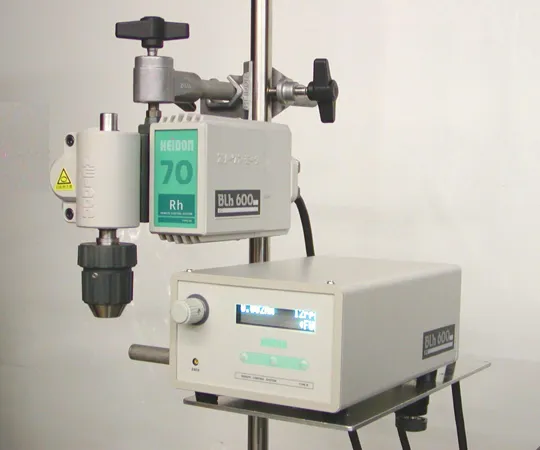

规格

• Speed: 5~300rpm
• Rated torque: 1.8 N · m/18.0kgf · cm
• Motor: DC Brushless Motor Type B Insulated 70 W
• Rotation Control: Feedback Control/Normal/Reverse Rotation Switching (Timer Mode/Manual)
• Forward reverse timer: 10 patterns (10, 20, 30, 45 sec, 1 min 30 sec, 2 min, 2 min 30 sec, 3 min, 4 min, 5 min intervals) can be set.
• Display: LCD Display Character Type 24 characters 2 lines
• Chuck: Collet Type Hand Clamping Chuck for φ8mm
• Thermal Protector: Motor Coil Temperature 90°C Safety Cover
• Size: Body/135 x 175 (excluding arm bar) x 211 mm, Control Box/118 x 245 x 102 mm
• Power supply: Single phase 100 V±10% 50/60Hz 140VA
• Power Cord Length: 2 m (with 2-Pole Ground Plug)
• Weight: Body/2.7 kg, Control Box/2.2 kg
• With Clamp Holder (21 x 16)
• Application: For high viscosity
• Remote control type with external input/output
• *Stand, shaft and stirring blade are not included.
• *Custom-made to external control specifications is possible. Please contact us.
• Check items: Actual measurement speed, timer operation, forward/reverse rotation changeover (Since there is no accuracy, check at more than the rated speed.)
