产品详细内容
产品型号: 1-2947-01-22
产品品牌: AS ONE Corporation
功能
- Since the control part cover is made of PP, it has excellent chemical resistance.
- Heater is forcibly turned off when the temperature is too high and an error message is displayed.
规格
- Model Number: EO-200K
- Temperature Setting Range: Room Temperature +5~180°C
- Analog
- Temperature Sensor: Resistance Temperature Measuring Body (Pt100 Ω)
- Material: Control Part Cover/PP (Polypropylene), Water Tank/Stainless Steel (SUS304), Heater/Stainless Steel (SUS304) Nickel Plated
- Heater Capacity: 750 W
- Power: 100 VAC 50/60Hz
- Weight: Approx. 1.5 kg
- Safety device: circuit breaker, bimetal thermostat
- External Dimensions: 210 x 275 x 124 mm
- Tank Inner Dimension: □200 x 123 mm
- Temperature control system: Microcomputer type proportional control
- Water Tank Shape: Square
- *Drainboard is not included.
- This product can provide inspection and inspection services. Please contact us.
- *The inspection and inspection service is a service that inspects the control system (internal temperature measurement, etc.) and the electric locomotive at the time of shipment or at the customer's site, and issues inspection reports.
相关产品推荐
您可能还对以下产品感兴趣
实验室仪器

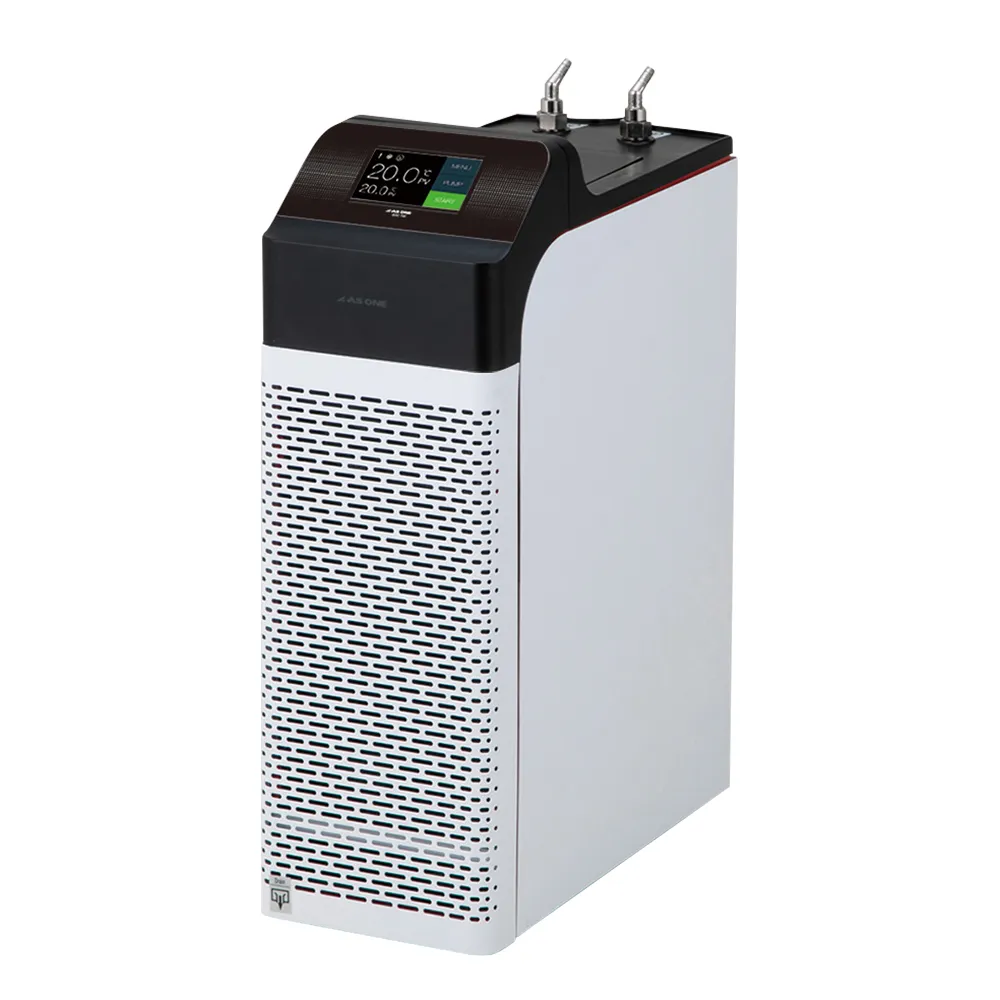

4-2732-01-22 ［Discontinued］Cooling Water Circulation Device -15~+30°C with Pre-Shipment Inspection SOC-700
