产品详细内容
产品型号: 65-4329-34-20
产品品牌: NAGANO KEIKI Co., Ltd.
功能

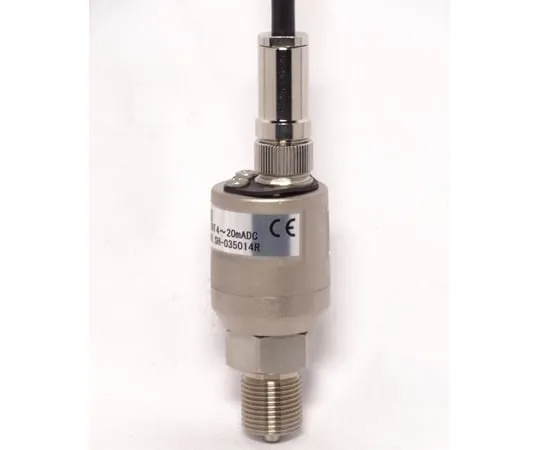

- This device is a pressure transmitter that converts pressure into an electric signal of 4~20 mA DC and transmits it through a detection unit using a semiconductor strain gauge and a built-in electronic circuit. Improves electrical and mechanical reliability and comes standard with zero span adjustment.
规格
- Shape (Mounting): Connector Type External Adjustment Type Cable Sold Separately
- Connections: G3/8B
- Material/Sealing Method: Fully Welded (SUS630 (17-4 PH), SUS316)
- Pressure Range: MPa_0~0.5
- Accuracy: ±1.0%F.S.
- Power: 24 VDC ±10%
- Output: 4~20 mA DC (2 wire)
- Treatment: Pear
