产品详细内容
产品型号: 65-4304-97
产品品牌: NAGANO KEIKI Co., Ltd.
功能

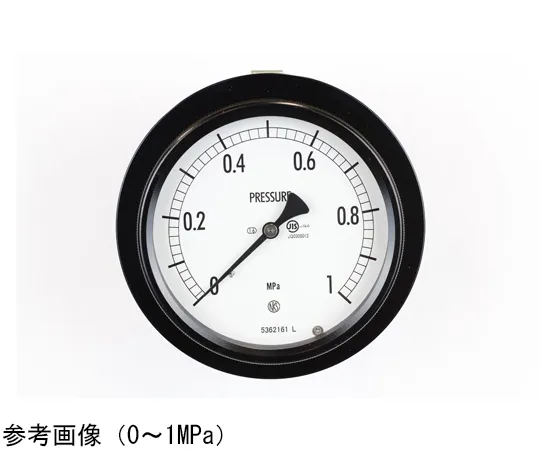

- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is used in a wide range of fields.
- The use of a sealed case allows it to be used under conditions such as rain and dew. (Equivalent to JIS C 0920 IP 43)
规格
- Size (mm): Φ100
- Shape (Mounting): Embedded D Frame (Mounting Bracket)
- Connections: G3/8B
- Material: SUS
- Performance: Pear
- Pressure Range: MPa_0~0.4
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
