规格

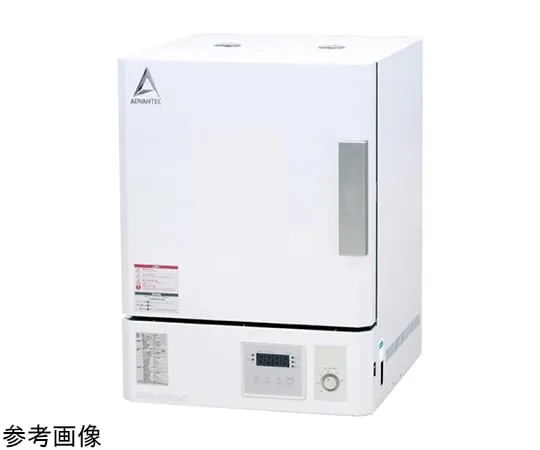

• Convection Type: Blower Type (Back Callout Vertical)
• Operating Temperature Range: 40°C to 270°C
• Temperature adjustment accuracy: ±0.5°C at270°C
• Temperature distribution accuracy (°C): ±5 at270
• Temperature fluctuation: 2.5°C at270°C
• Temperature Gradient: 15.0°C at270°C
• Temperature Rise Time: Approx. 80 Minutes Room Temperature →270°C
• Operating Ambient Temperature: 5°C~35°C
• Temperature Controller: Microcomputer PID Control (TC-EVI System)
• Mode of operation: Stationary operation, Timer operation (Auto stop, cooling)1 minute to 99 hours 59 minutes
• Temperature Sensor: K Thermocouple
• Heater: Stainless Sheath Heater
• Heater Capacity: 1.1 kW
• Blower Fan: Sirocco Fan (Aluminum)
• Interior: SUS304
• Door Packing: Silicone Rubber
• Safety devices: self-diagnostic function (Overheat, Temperature Sensor Abnormal, Control Abnormal, Ambient Temperature Abnormal), independent overheat prevention device, control circuit protective fuse, key lock function, overcurrent/earth leakage breaker, door switch
• Interior Dimensions (Effective Dimensions) (mm): W460 x D450 x H450 (418)
• Dimensions (mm): W590 x D635 x H810
• Internal Capacity (Approx. L): 93
• Number of Shelves/Pitch: 9 Shelves/45 mm
• Exhaust Port: Φ28 mm 2 Nos.
• Power (50 Hz/60Hz): 100 VAC 12 A
• Required Power Supply: 100 VAC 15 A
• Mass (approx. kg): 50
• Accessories: 2 Shelf Boards, 4 Shelf Supports, 4 Leg Caps
